Satellite Digital Audio Receiver System Module Connector - C4344

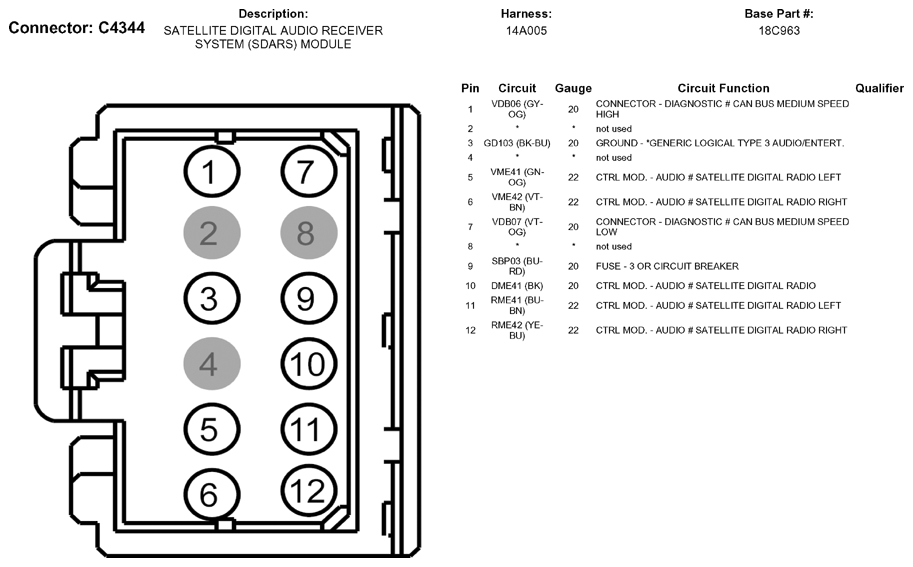

Fig 1: Satellite Digital Audio Receiver System Module Connector End View (C4344)

G05790209

Courtesy of FORD MOTOR CO.
