Driver Seat Horizontal Motor Connector - C362

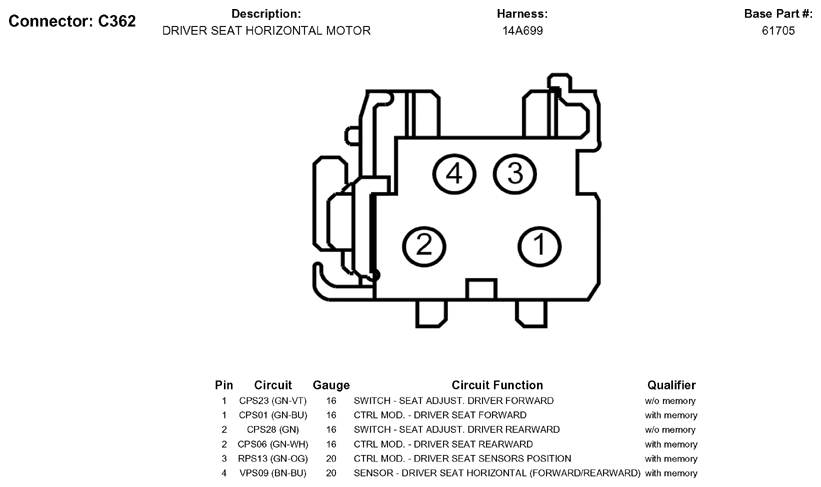

Fig 1: Driver Seat Horizontal Motor Connector End View (C362)

G05790002

Courtesy of FORD MOTOR CO.
