Steering Angle Sensor Module Connector - C226

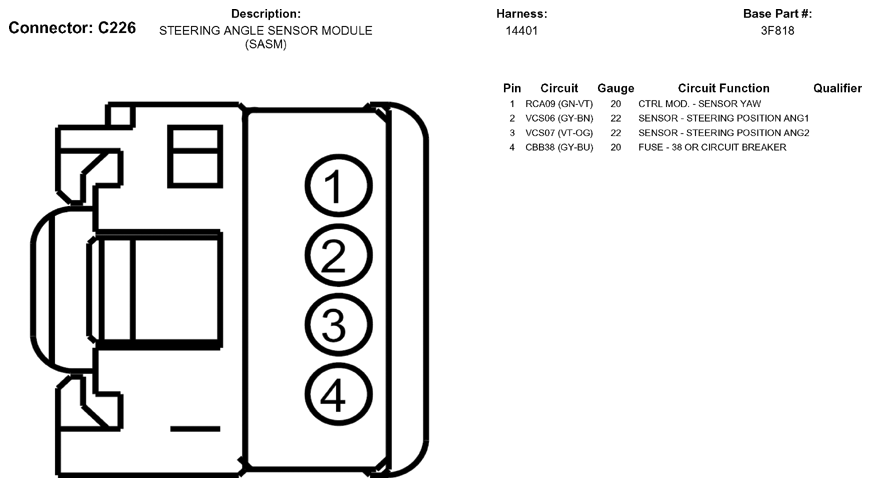

Fig 1: Steering Angle Sensor Module Connector End View (C226)

G05789957

Courtesy of FORD MOTOR CO.
