Passenger Safety Canopy Module Connector End View - C9019

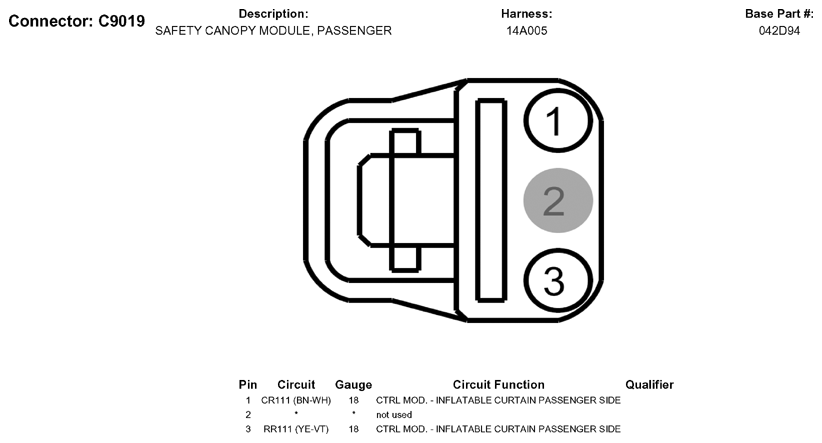

Fig 1: Passenger Safety Canopy Module Connector End View (C9019)

G05790215

Courtesy of FORD MOTOR CO.
