Anti-Lock Brake System (ABS) Module: Notes

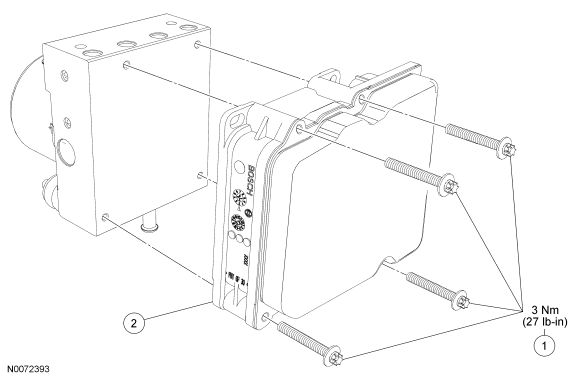

Fig 1: Exploded View Of Anti-Lock Brake System ABS Module With Torque Specifications
GF0017408Courtesy of FORD MOTOR CO.
Item Part Number Description
1 13254806 ABS module screws (4 required)
2 2C219 ABS module
