Subframe - Rear: Notes

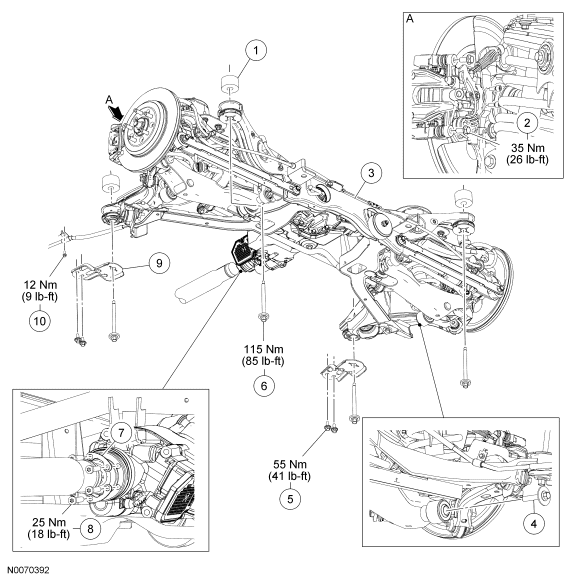

Fig 1: Subframe Components - Rear With Torque Specifications
GF0045609Courtesy of FORD MOTOR CO.
Item Part Number Description
1 5K812 Rear subframe-to-underbody spacer - front wheel drive (FWD) Taurus X only (4 required)
2 - Rear caliper pin (4 required)
3 - Rear subframe assembly
4 W709433 LH/ W708740 RH Rear shock-to-lower control arm bolt (2 required)
5 W709583 Rear subframe bracket bolt (4 required)
6 W710716 Rear subframe bolt (4 required)
7 - Driveshaft washer - AWD only (3 required)
8 - Driveshaft bolt - AWD only (6 required)
9 5084AA LH/ 5084AB RH Rear subframe bracket
10 W505253 Park brake intermediate cable routing bolt
