Subframe - Front: Notes

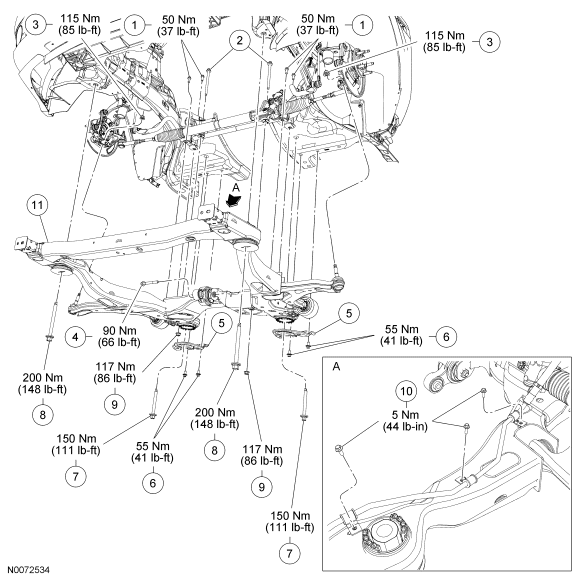

Fig 1: Subframe Components - Front With Torque Specifications
GF0045608Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W520213 Stabilizer bar brackets-to-front subframe bolts (4 required)
2 W713000 Power steering gear-to-front subframe bolts (2 required)
3 W710015 Lower ball joint nuts (2 required)
4 W706674 Lower roll restrictor bolt
5 5362-AA LH/ 5R364-AA RH Front subframe brackets
6 W710999 Front subframe bracket bolts (4 required)
7 W712261 Front subframe rear bolts (2 required)
8 W710714 Front subframe front bolts (2 required)
9 W520214 Power steering gear-to-front subframe nuts (2 required)
10 W709474 Power steering line routing bolts (3 required)
11 5N356 Front subframe assembly
