Steering Column Multifunction Switch: Notes

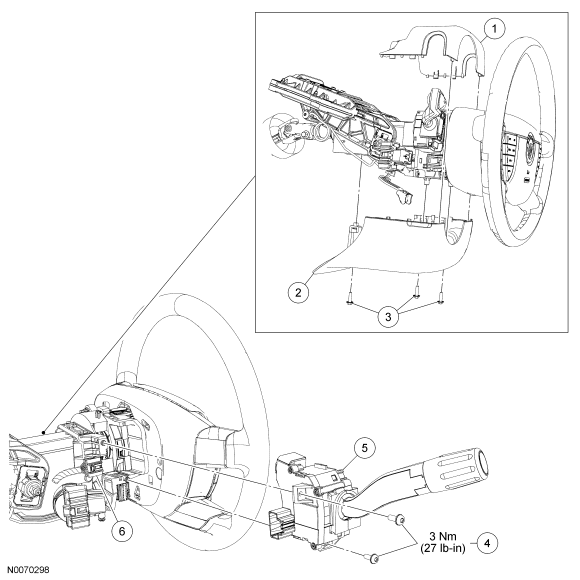

Fig 1: Steering Column Multifunction Switch Components With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3530	Upper steering column shroud
2	3530	Lower steering column shroud
3	W707658	Steering column shroud screws (3 required)
4	W504694	Multifunction switch screws (2 required)
5	13K359	Multifunction switch
6	-	Multifunction switch electrical connector (part of 14401)
