Parking Aid Module: Notes

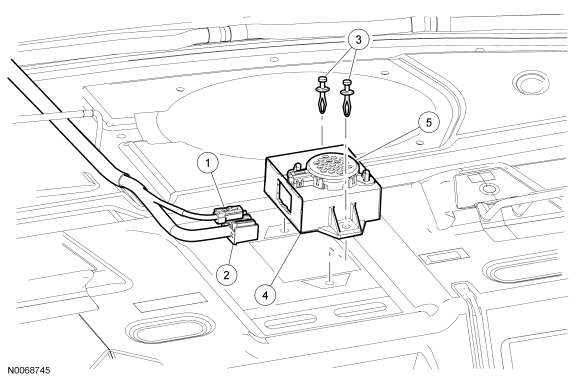

Fig 1: Parking Aid Module - Sedan
GF0018177Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Parking aid speaker electrical connector (part of 14A005)
2 - Parking aid module (PAM) electrical connector (part of 14A005)
3 W706350 Pin-type retainers (2 required)
4 15T850 PAM
5 15A866 Parking aid speaker

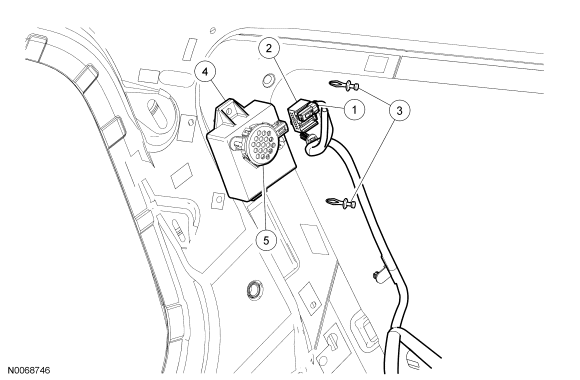

Fig 2: Parking Aid Module - Wagon
GF0018178Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Parking aid speaker electrical connector (part of 14A005)
2 - Parking aid module (PAM) electrical connector (part of 14A005)
3 W706350 Pin-type retainers (2 required)
4 15T850 PAM
5 15A866 Parking aid speaker
