Brake Shift Interlock Actuator: Notes

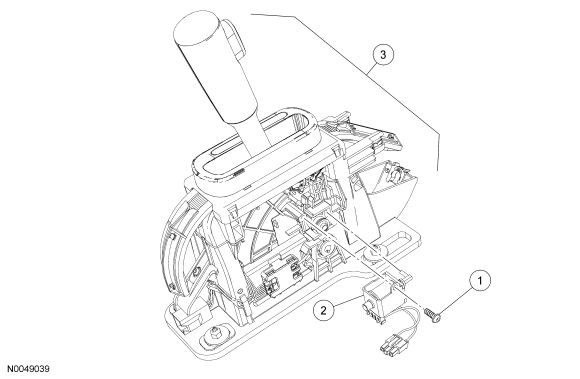

Fig 1: Exploded View Of Brake Shift Interlock Actuator
GF0027516Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Brake shift interlock actuator screw
2 7E096 Brake shift interlock actuator
3 - Selector lever
