Safety Belt Retractor - Third Row: Notes

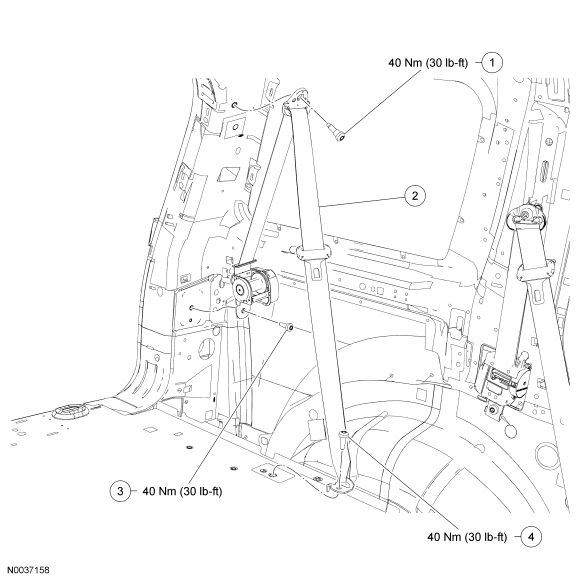

Fig 1: Exploded View Of Safety Belt Retractor With Torque Specifications - Third Row
GF0026601Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W704703 D-ring bolt
2 611B50 RH/ 611B51 LH Safety belt retractor
3 W700883 Safety belt retractor bolt (part of 611B50 RH/ 611B51 LH)
4 W700883 Safety belt retractor anchor bolt (part of 611B50 RH/ 611B51 LH)
