Wheel Speed Sensor - Rear: Notes

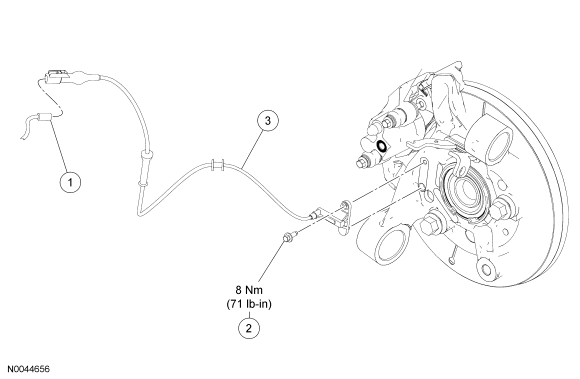

Fig 1: Exploded View Of Rear Wheel Speed Sensor With Torque Specification
GF0027327Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Wheel speed sensor electrical connector
2 - Wheel speed sensor bolt
3 2C216 LH/ 2C190 RH Wheel speed sensor
