Smart Junction Box Connector
>>
Smart Junction Box Connector End View - C2280B
Smart Junction Box Connector End View - C2280B

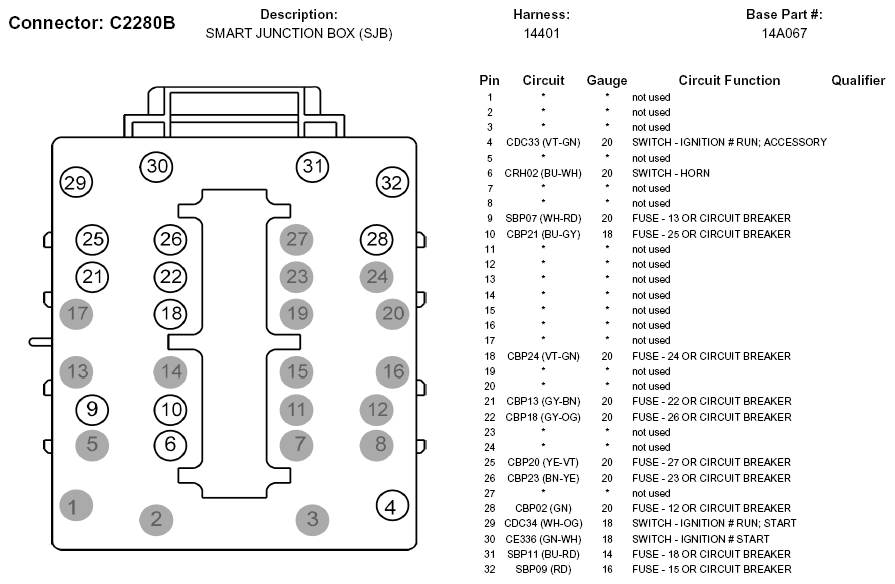

Fig 1: Smart Junction Box Connector End View (C2280B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
