Right Rear Window Control Switch Connector - C819
Right Rear Window Control Switch Connector - C819

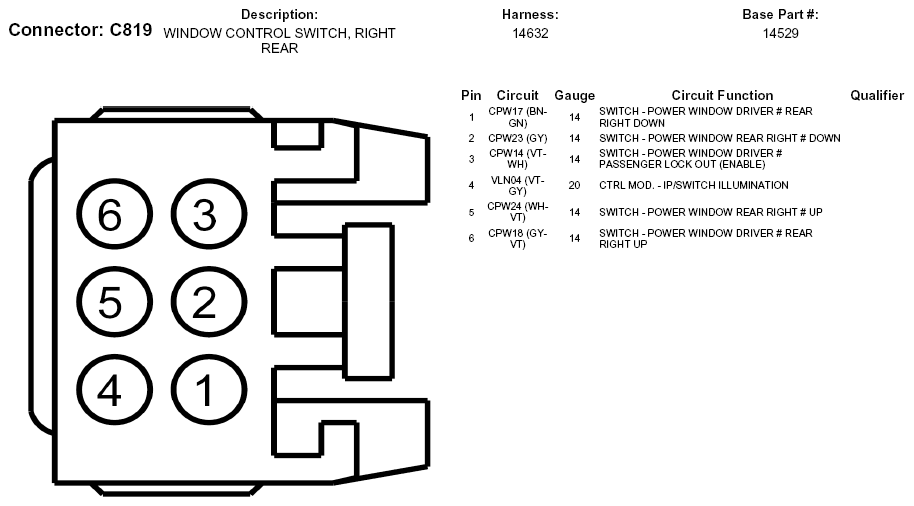

Fig 1: Right Rear Window Control Switch Connector End View (C819)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
