Parking Aid Module Connector - C4014

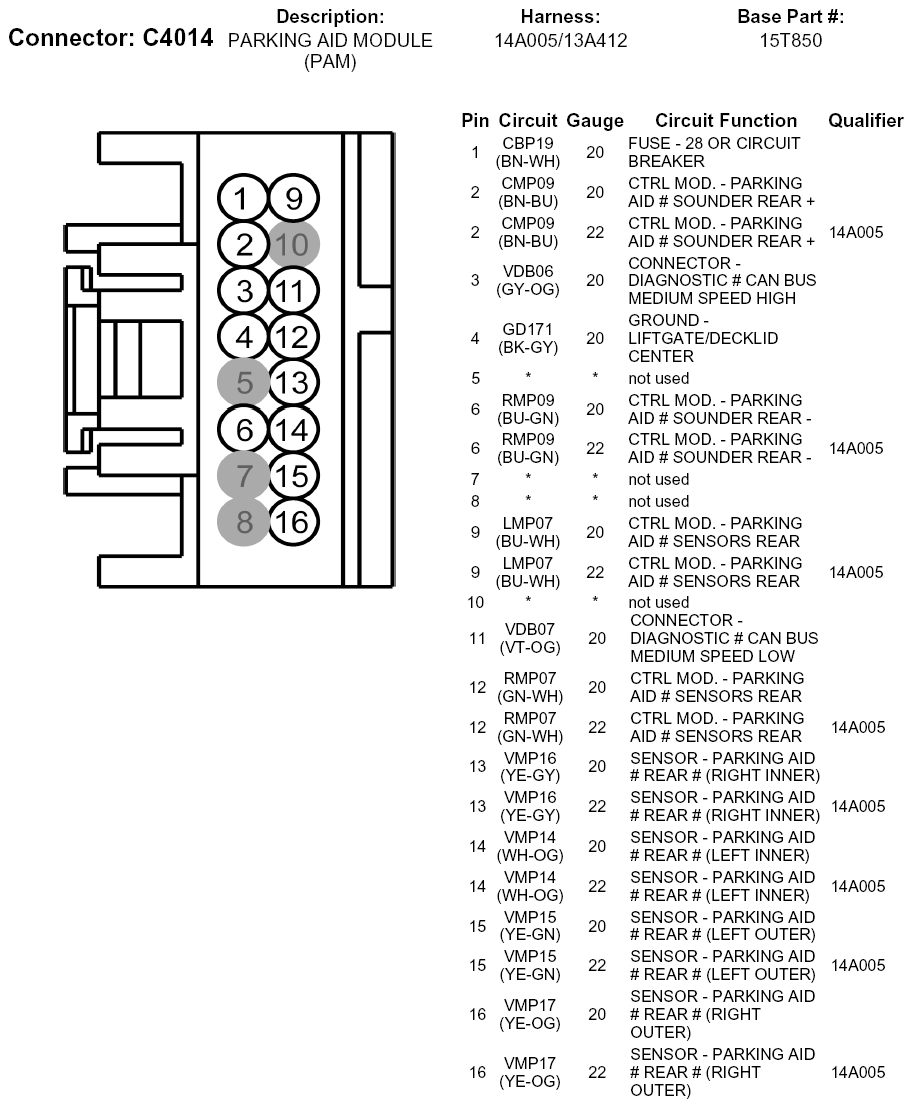

Fig 1: Parking Aid Module Connector End View (C4014)

G05770130

Courtesy of FORD MOTOR CO.
