Message Center Switch Connector - C253

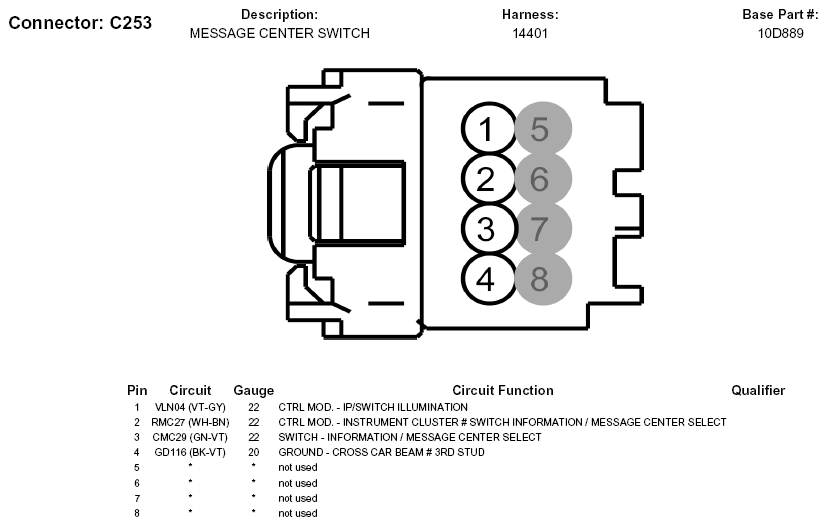

Fig 1: Message Center Switch Connector End View (C253)

G05769849

Courtesy of FORD MOTOR CO.
