Intake Manifold Runner Control Monitor Connector - C1161
Intake Manifold Runner Control Monitor Connector - C1161

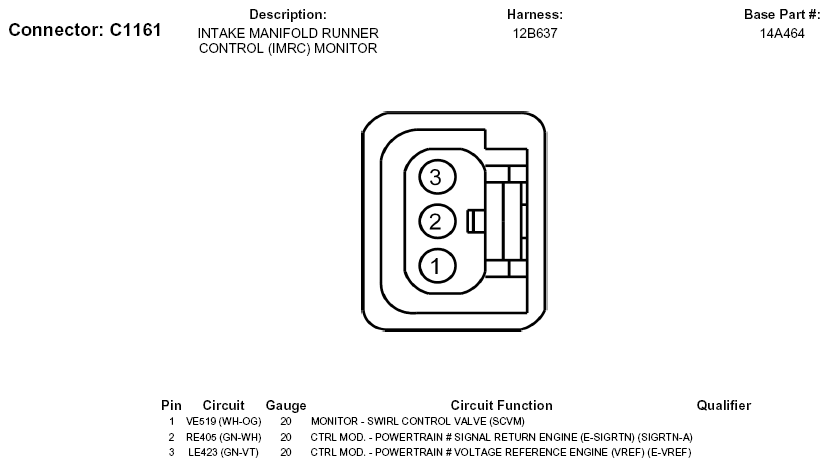

Fig 1: Intake Manifold Runner Control Monitor Connector End View (C1161)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
