Vehicle Certification (VC) Label - Ford Taurus X: Notes

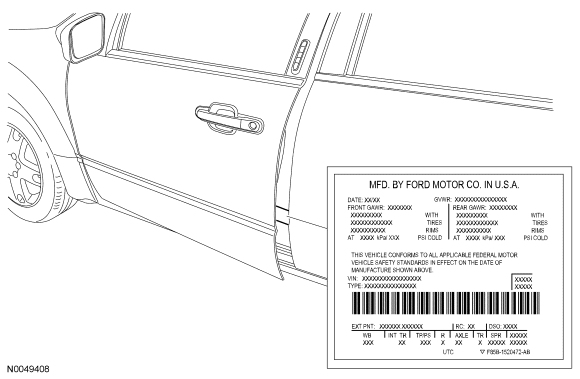

The vehicle certification (VC) label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes gross vehicle weight ratings (GVWR).
If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.
| Item | Description |
|---|---|
| 1 | Exterior paint code |
| 2 | Region code |
| 3 | Domestic special order code |
| 4 | Wheelbase code |
| 5 | Interior trim code |
| 6 | Tape/paint stripe code |
| 7 | Radio code |
| 8 | Axle code |
| 9 | Transmission code |
| 10 | Spring code |
| 11 | Powertrain calibration information |
Vehicle paint codes may be listed as a 2-part code. The first set of paint code numbers/letters listed indicate the vehicle primary body color. The second set of numbers/letters listed (if applicable) indicate a 2-tone or accent body color. All colors are base coat/clear coat.
Primary Body Color
- DI - Dark Ink Blue
- DV - Light Tundra/Titanium Green
- FX - Merlot
- G5 - Alloy Gray
- JP - Silver Birch
- LS - Light Ice Blue Metallic
- ND - Dune Pearl
- NH - Light Sage
- UA - Ebony
- YZ - Oxford White
2-Tone/Accent Body Color
- ND - Dune Pearl
- SE - Silver Eclipse
- 113 - 113-inch wheelbase
Interior trim codes are a 2-part code. The first character listed, identifies the interior trim type. The second character listed identifies the interior trim color.
Trim Codes
- B - Mainframe cloth seating
- D - Milled Pebble leather seating
Interior Trim Color
- C - Camel Tan
- L - Light Camel Tan
- W - Charcoal Black
Tape and paint stripe codes do not apply.
- 2 - Premium electronic AM/FM stereo with CD player and clock
- 6 - Premium electronic AM/FM stereo with 6-disc CD changer (MP3 capable) and clock
- N - AM/FM stereo with CD player, clock and navigation system
- 3E - 3.16 ratio
- J - 6 speed automatic
Spring codes list both front and rear spring codes. The first set of characters identifies the front springs. The second set of characters identify the rear springs.
Front Springs
- AA - All Taurus X
Rear Springs
- 11 - FWD vehicles
- 22 - AWD vehicles
