Home >> Mercury >> 2008 >> Sable Base, FWD >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine >> In-Vehicle Servicing >> Exhaust Manifold - RH >> Notes

Exhaust Manifold - RH: Notes

Material

Item Specification
Motorcraft Metal Surface Prep
ZC-31		 -

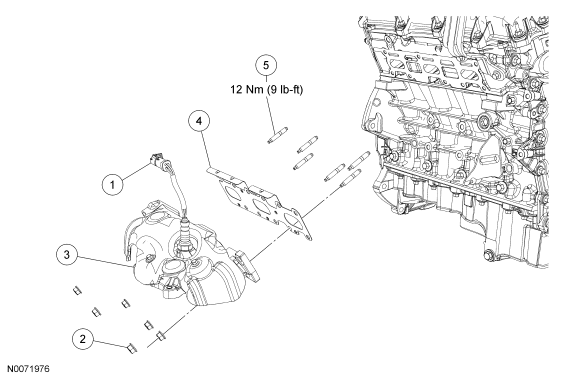

Fig 1: Exploded View Of Exhaust Manifold - RH With Torque Specification
GF0031374Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 RH heated oxygen sensor (HO2S) electrical connector
2 W701706 RH exhaust manifold nut (6 required)
3 9430 RH exhaust manifold
4 9448 RH exhaust manifold gasket
5 W701732 RH exhaust manifold stud (6 required)
