Wheel Speed Sensor - Rear, Front Wheel Drive (FWD): Notes

NOTE: LH side shown, RH side similar.

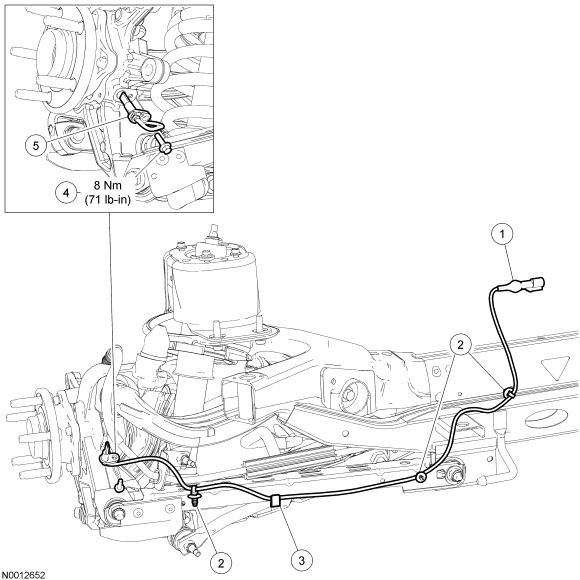

Fig 1: Exploded View Of Rear Wheel Speed Sensor - Front Wheel Drive FWD With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Wheel speed sensor electrical connector (part of 2C216)
2	-	Wheel speed sensor pin-type retainers (part of 2C190 LH/ 2C216 RH)
3	-	Wheel speed sensor harness retainer (part of 2C190 LH/ 2C216 RH)
4	W709792	Wheel speed sensor bolt
5	2C190 LH/ 2C216 RH	Wheel speed sensor
