Stator Support and Gear Assembly: Disassembly

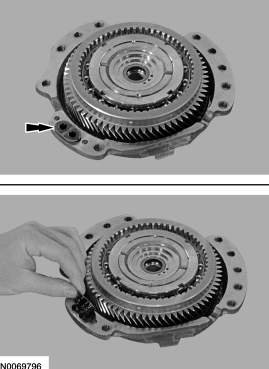

  1. Remove and discard the stator support assembly seal.
    2. Fig 1: Identifying Stator Support Assembly Seal
    GF0044133Courtesy of FORD MOTOR CO.
  2. Install 7/8 Inch to 1 Inch Collet 303-D020 on the input shaft seal.
    3. Fig 2: Identifying Collet 303-D020
    GF0044134Courtesy of FORD MOTOR CO.
  3. Assemble Slide Hammer 100-001 and 7/8 Inch to 1 Inch Collet 303-D020 and remove and discard the input shaft seal.
    4. Fig 3: Removing Input Shaft Seal
    GF0044135Courtesy of FORD MOTOR CO.
  4. Remove the drive sprocket thrust washer.
    5. Fig 4: Identifying Drive Sprocket Thrust Washer
    GF0044136Courtesy of FORD MOTOR CO.
  5. Using a suitable tool, remove the stator support-to-torque converter seal.
    6. Fig 5: Identifying Stator Support-to-torque Converter Seal
    GF0044137Courtesy of FORD MOTOR CO.
    NOTE: Note the location of the Torx head and the hex head bolts for assembly.
  6. Remove the 4 bolts and the stator support feed tube.
    7. Fig 6: Identifying Stator Support Feed Tube Bolts
    GF0044138Courtesy of FORD MOTOR CO.
  7. Remove and discard the gasket for the feed tube assembly.
    8. Fig 7: Identifying Feed Tube Assembly
    GF0044139Courtesy of FORD MOTOR CO.
  8. Clean and inspect the stator support assembly for damage and install new, if necessary.
