Subwoofer Amplifier Connector
Subwoofer Amplifier Connector

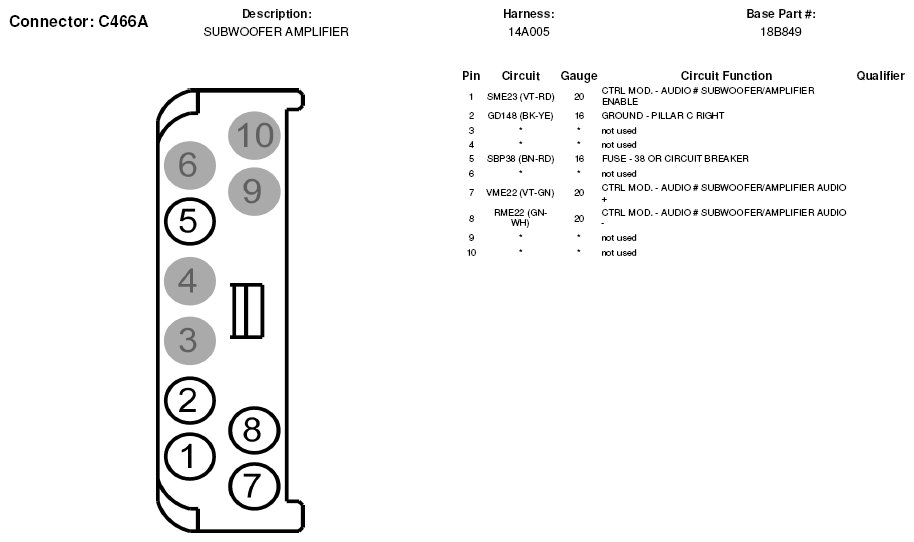

Fig 1: Subwoofer Amplifier Connector End View (C466A)

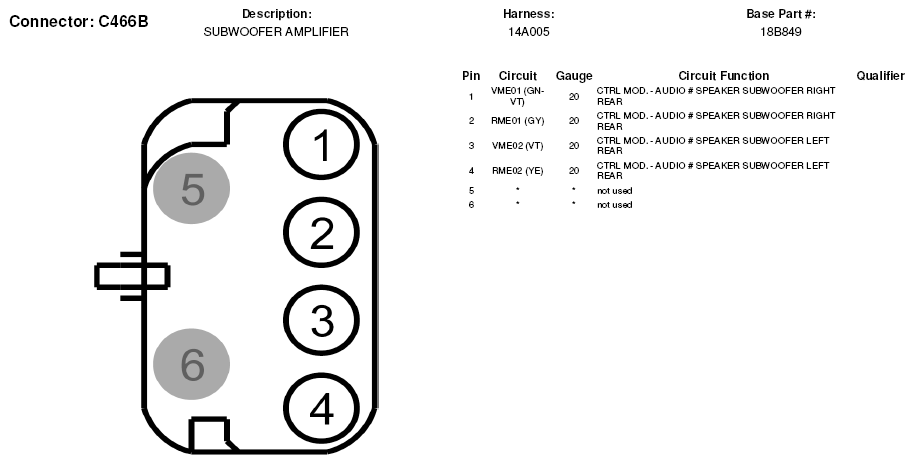

Fig 2: Subwoofer Amplifier Connector End View (C466B)

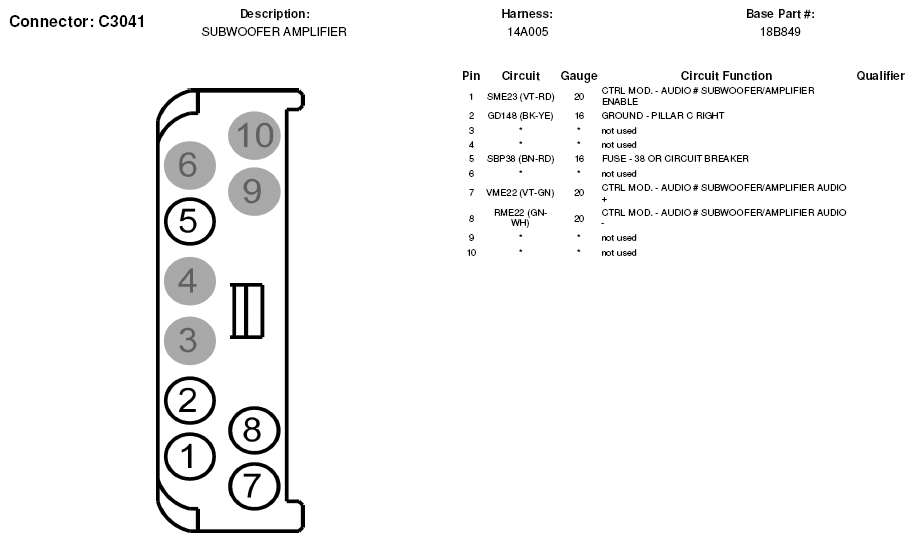

Fig 3: Subwoofer Amplifier Connector End View (C3041)
