Home >> Mercury >> 2008 >> Sable Base, AWD >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Connector Views >> Right Rear Window Adjust Switch Connector

Right Rear Window Adjust Switch Connector

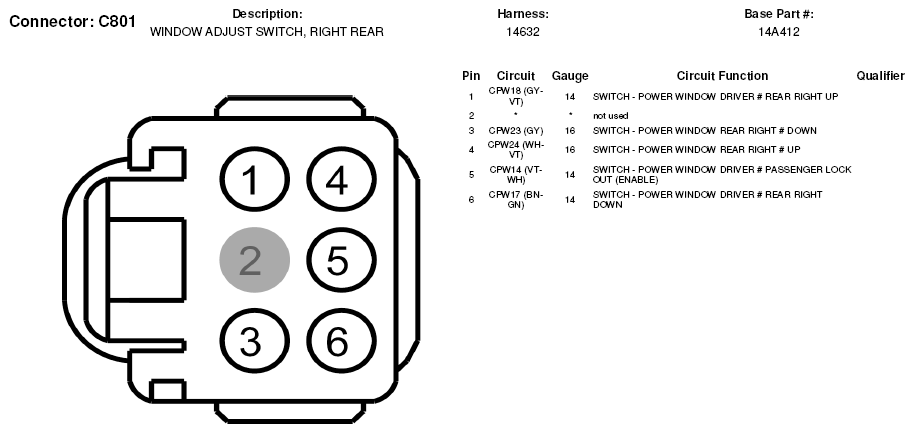

Fig 1: Right Rear Window Adjust Switch Connector End View (C801)

G05603397
