Right Front Impact Sensor Connector
Right Front Impact Sensor Connector

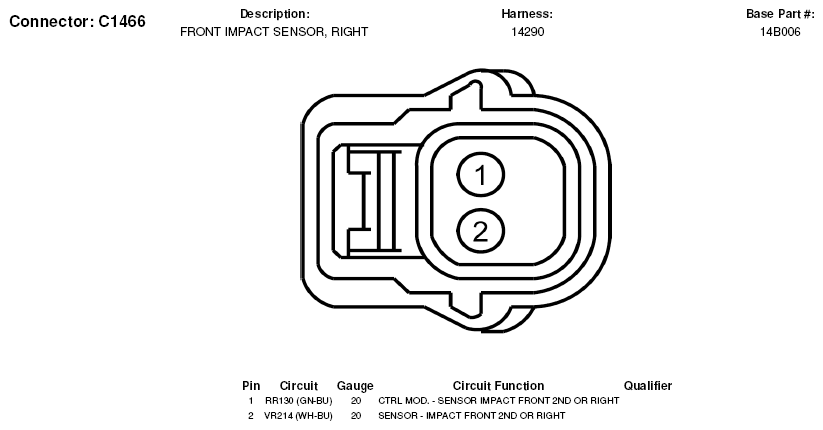

Fig 1: Right Front Impact Sensor Connector End View (C1466)
