Passive Anti-Theft Transceiver Connector

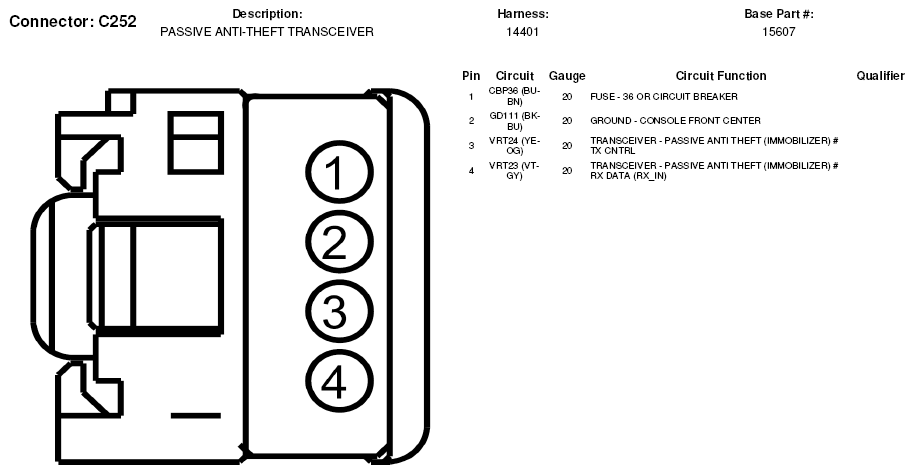

Fig 1: Passive Anti-Theft Transceiver Connector End View (C252)

G05603306
