Passenger 1 Side Impact Sensor Connector

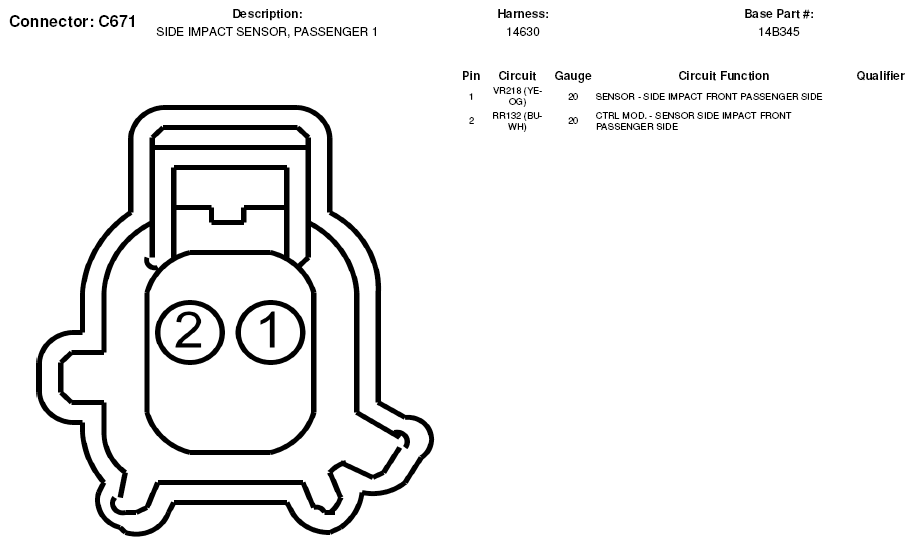

Fig 1: Passenger 1 Side Impact Sensor Connector End View (C671)

G05603390
