Left Second Row Seat Control Switch Connector

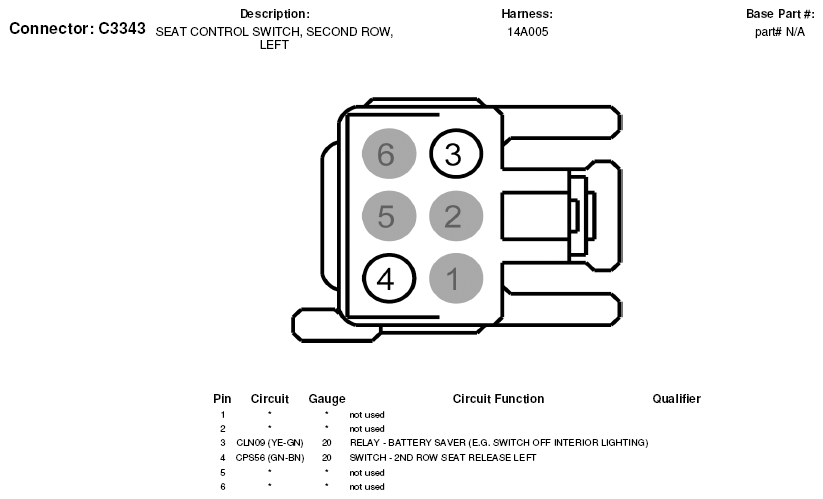

Fig 1: Left Second Row Seat Control Switch Connector End View (C3343)

G05603532
