Left Rear Wheel Speed Sensor Connector

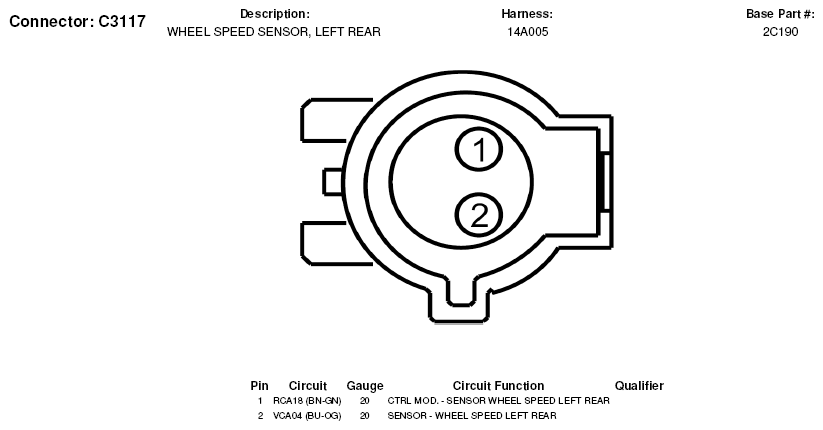

Fig 1: Left Rear Wheel Speed Sensor Connector End View (C3117)

G05603492
