Instrument Panel Power Point Connector

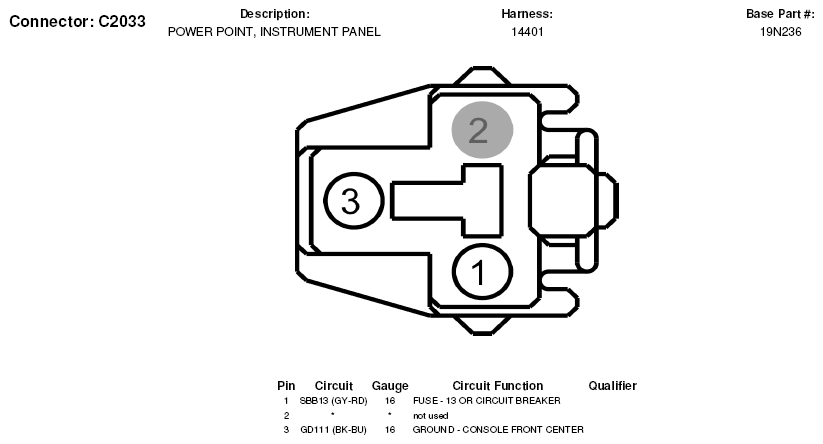

Fig 1: Instrument Panel Power Point Connector End View (C2033)

G05603454
