Inline Connectors

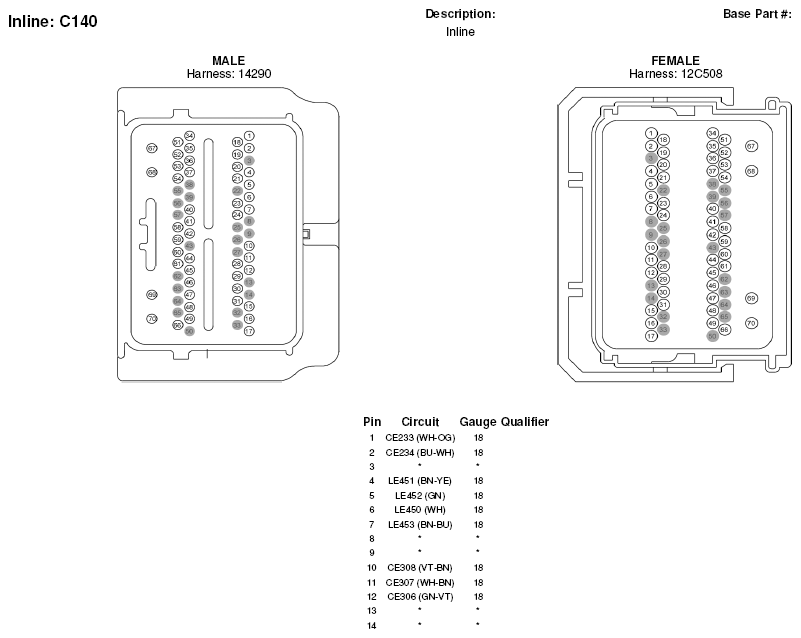

Fig 1: Inline (1 Of 2) Connector End View (C140) (1 Of 2)

G05603255

Fig 2: Inline (2 Of 2) Connector End View (C140) (2 Of 2)

G05603256

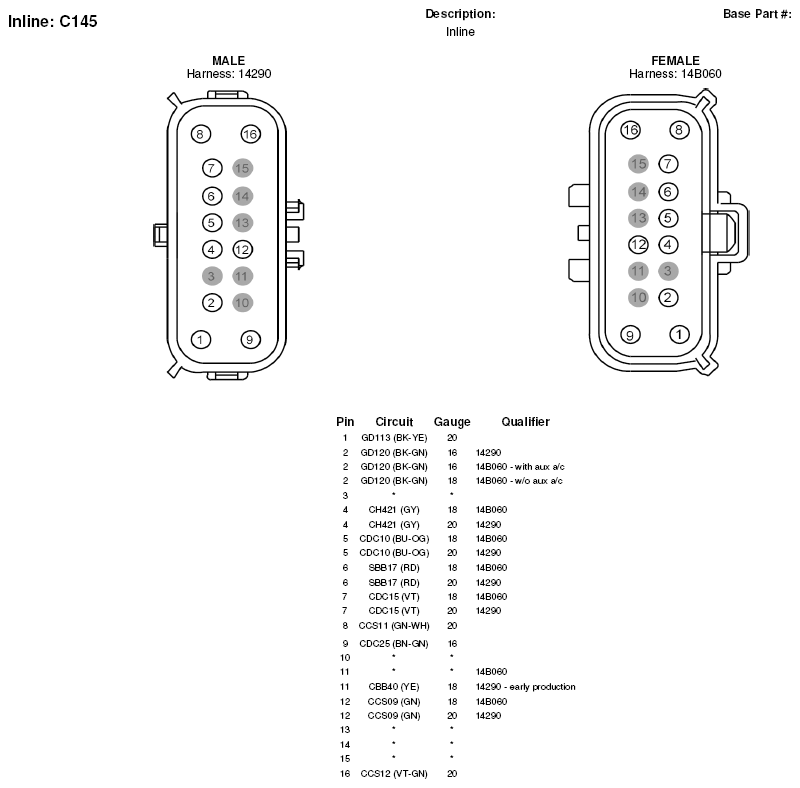

Fig 3: Inline Connector End View (C145)

G05603259

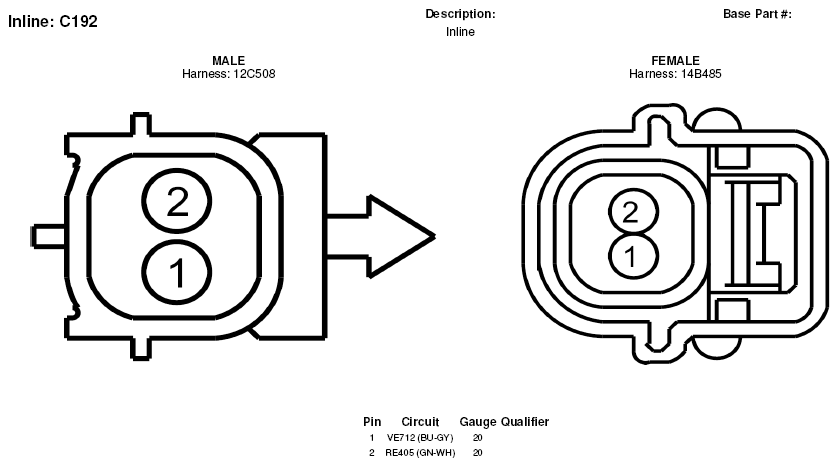

Fig 4: Inline Connector End View (C192)

G05603281

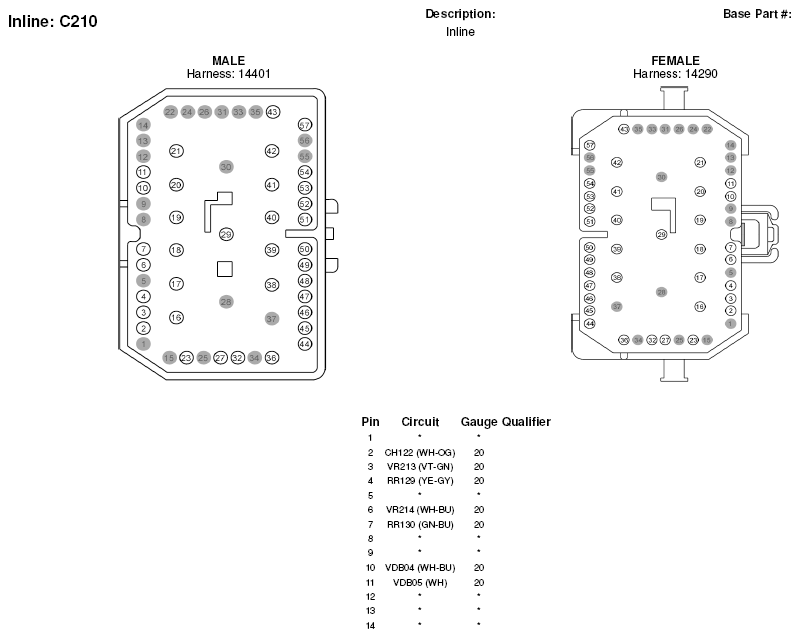

Fig 5: Inline (1 Of 2) Connector End View (C210) (1 Of 2)

G05603286

Fig 6: Inline (2 Of 2) Connector End View (C210) (2 Of 2)

G05603287

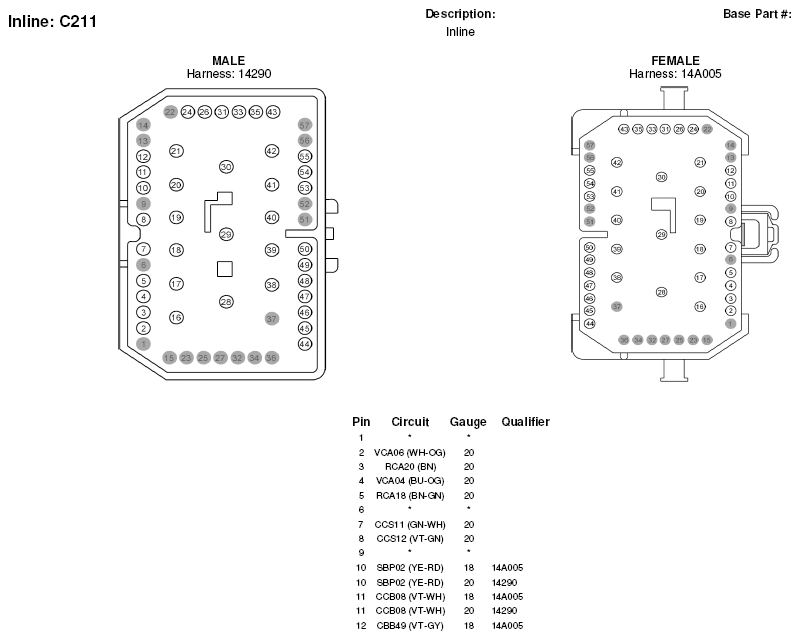

Fig 7: Inline (1 Of 2) Connector End View (C211) (1 Of 2)

G05603288

Fig 8: Inline (2 Of 2) Connector End View (C211) (2 Of 2)

G05603289

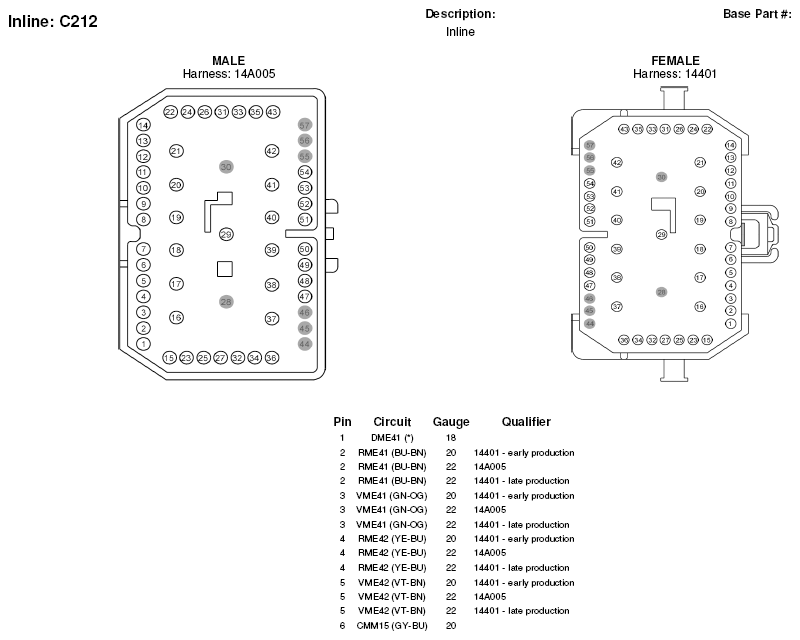

Fig 9: Inline (1 Of 2) Connector End View (C212) (1 Of 2)

G05603290

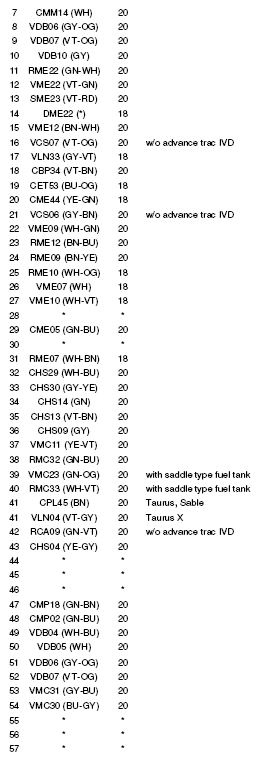

Fig 10: Inline (2 Of 2) Connector End View (C212) (2 Of 2)

G05603291

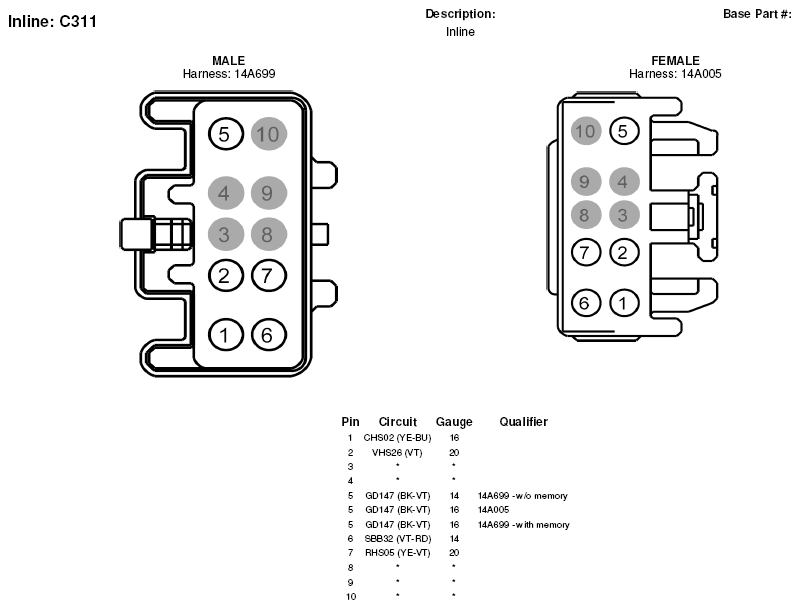

Fig 11: Inline Connector End View (C311)

G05603319

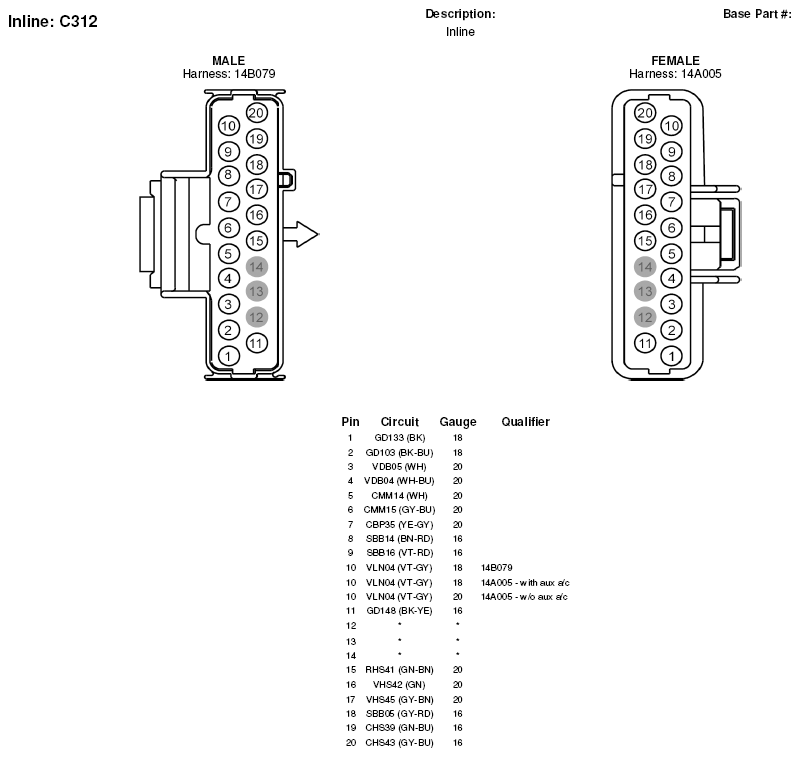

Fig 12: Inline Connector End View (C312)

G05603320

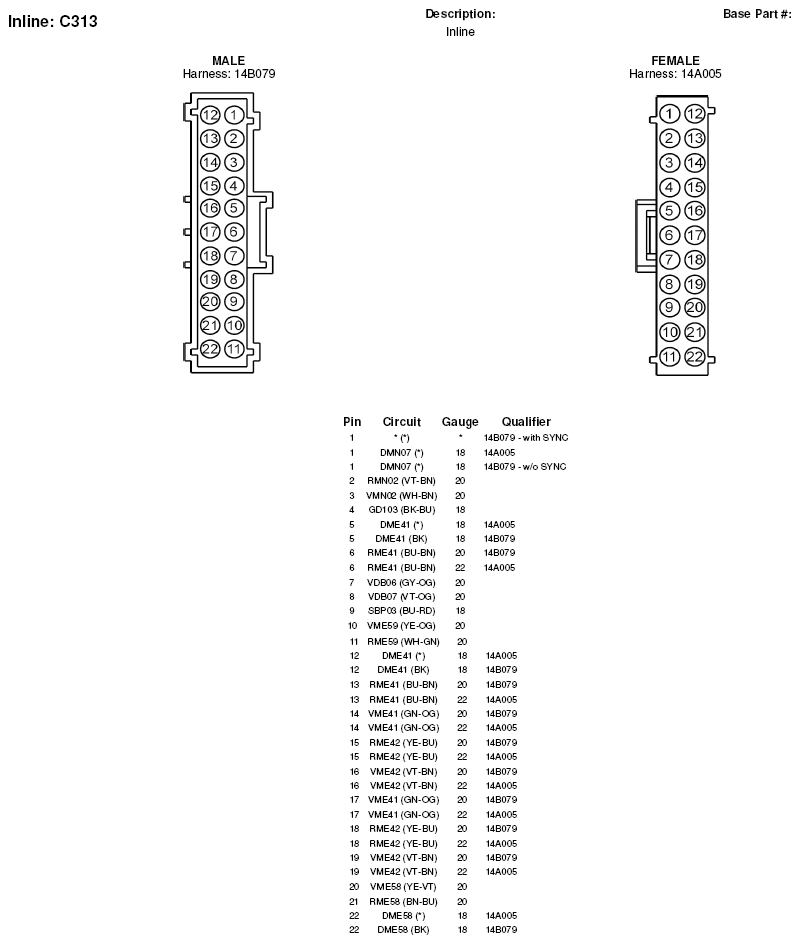

Fig 13: Inline Connector End View (C313)

G05603321

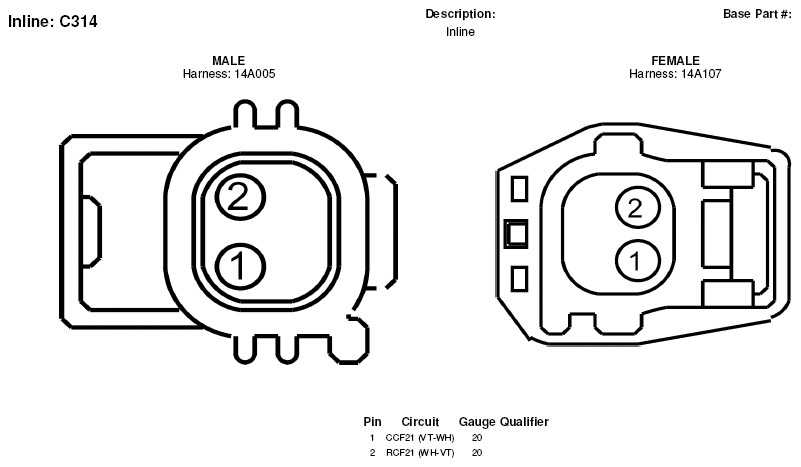

Fig 14: Inline Connector End View (C314)

G05603322

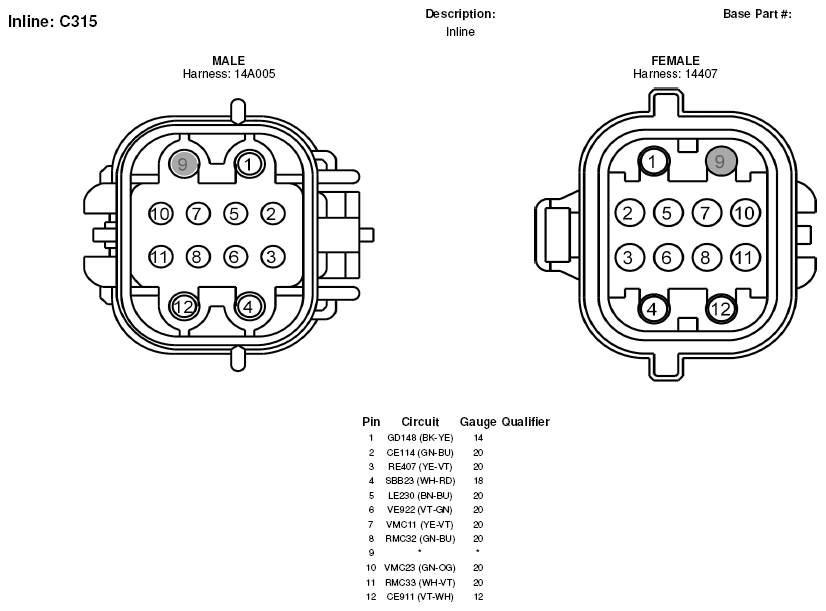

Fig 15: Inline Connector End View (C315)

G05603323

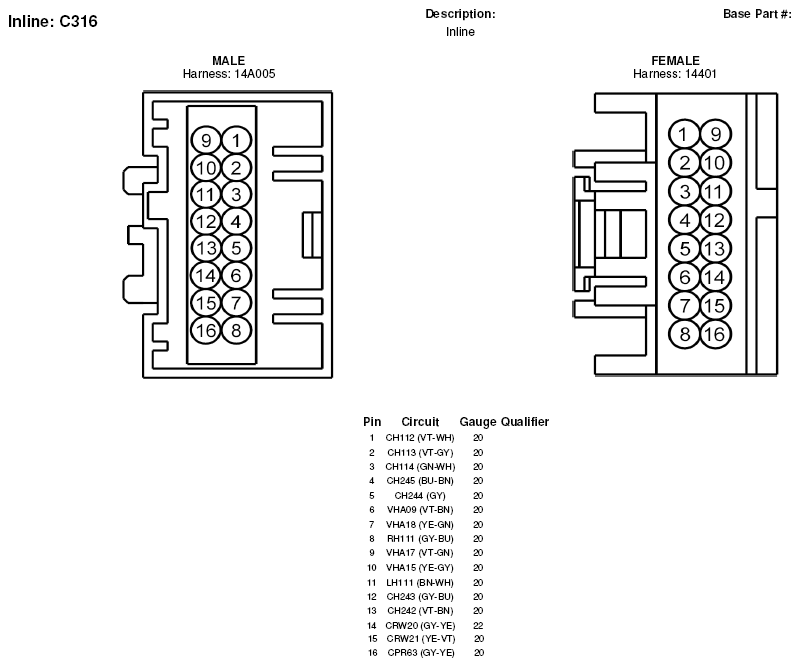

Fig 16: Inline Connector End View (C316)

G05603324

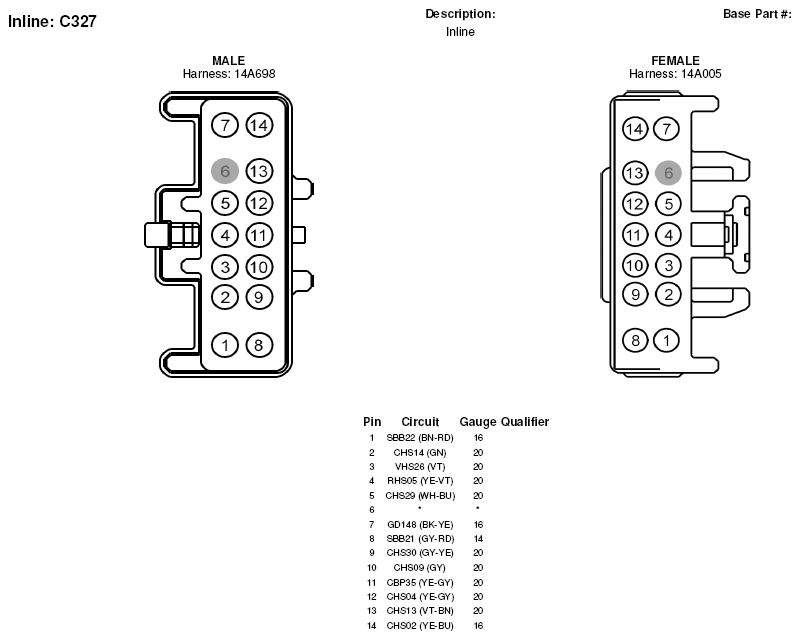

Fig 17: Inline Connector End View (C327)

G05603325

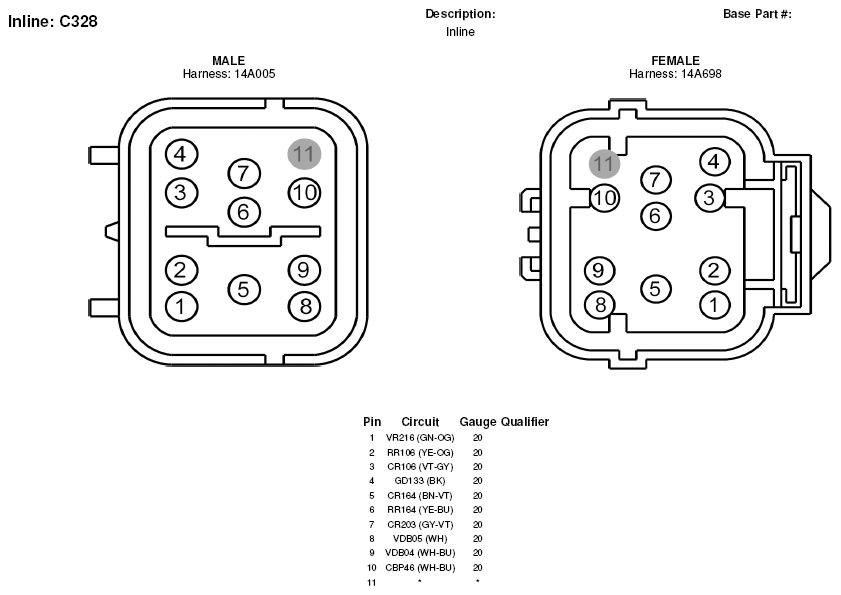

Fig 18: Inline Connector End View (C328)

G05603326

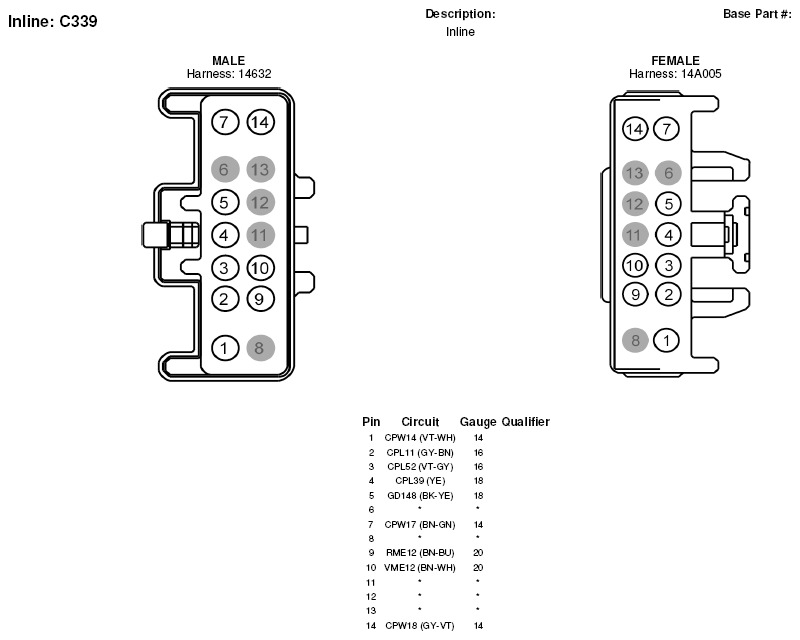

Fig 19: Inline Connector End View (C339)

G05603331

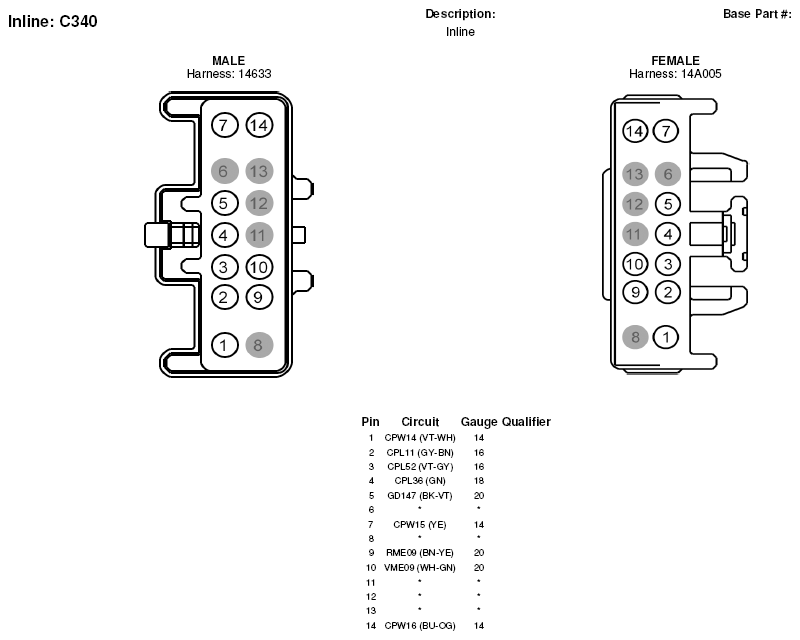

Fig 20: Inline Connector End View (C340)

G05603332

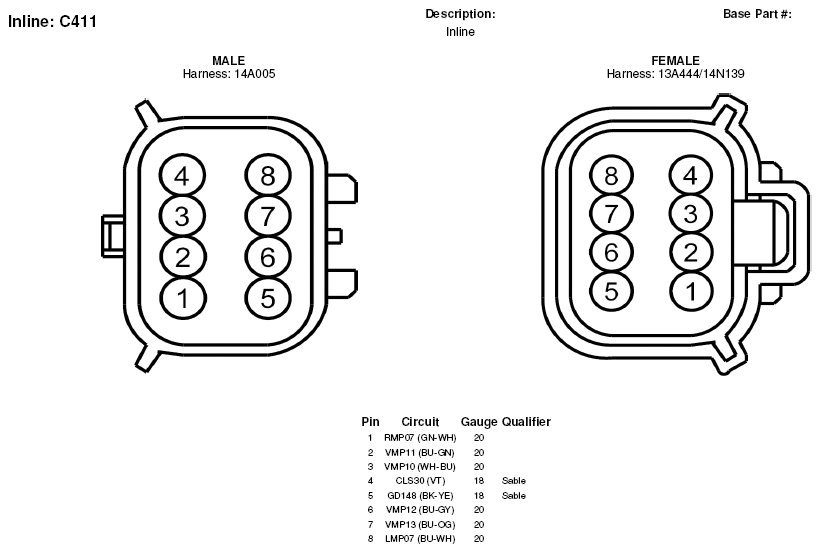

Fig 21: Inline Connector End View (C411)

G05603352

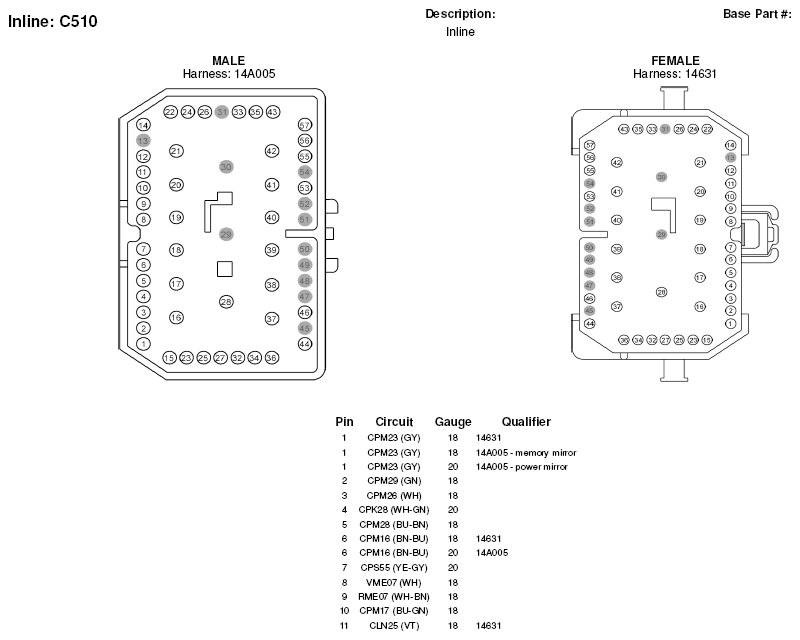

Fig 22: Inline (1 Of 2) Connector End View (C510) (1 Of 2)

G05603371

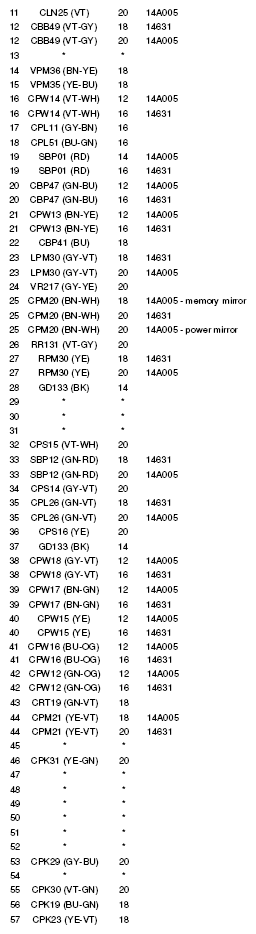

Fig 23: Inline (2 Of 2) Connector End View (C510) (2 Of 2)

G05603372

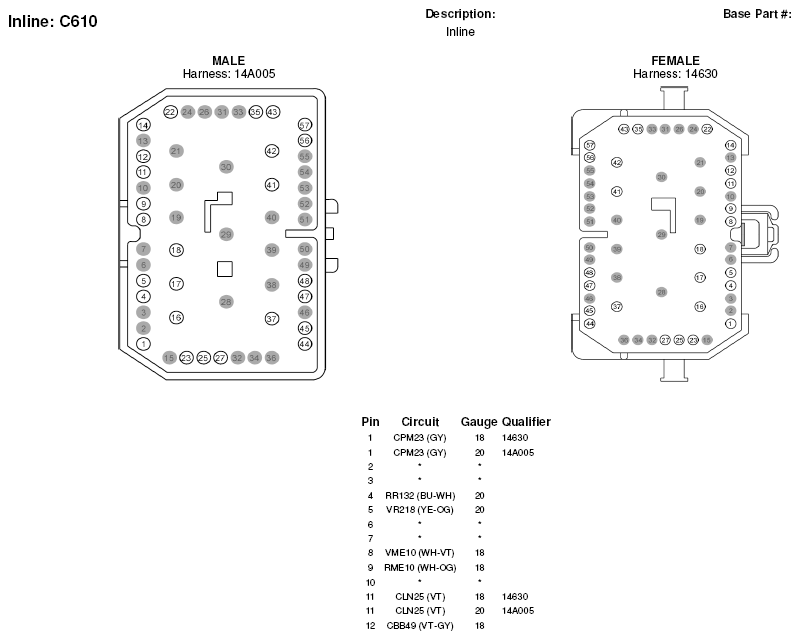

Fig 24: Inline (1 Of 2) Connector End View (C610) (1 Of 2)

G05603386

Fig 25: Inline (2 Of 2) Connector End View (C610) (2 Of 2)

G05603387

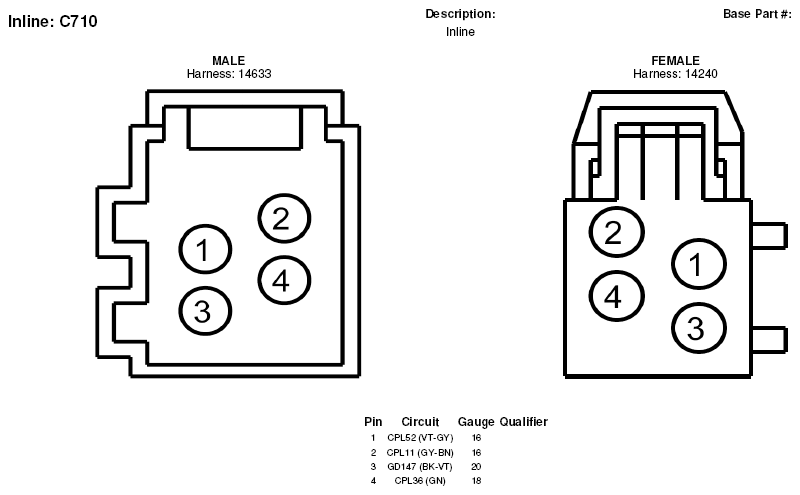

Fig 26: Inline Connector End View (C710)

G05603395

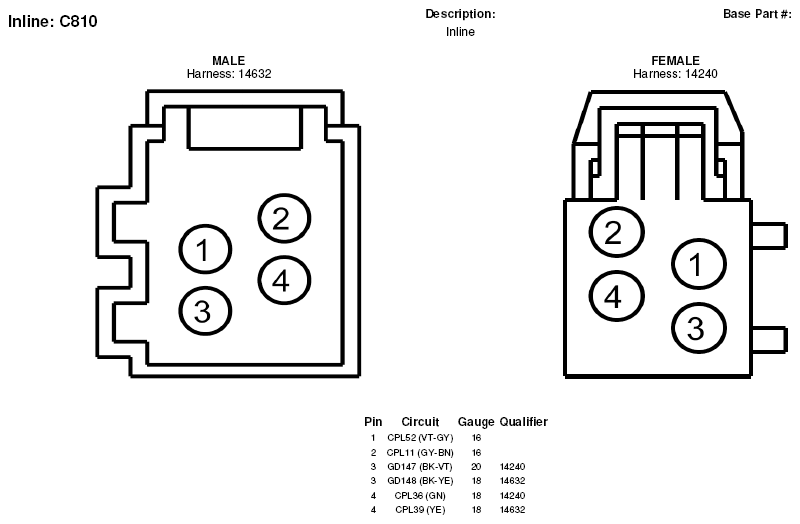

Fig 27: Inline Connector End View (C810)

G05603401

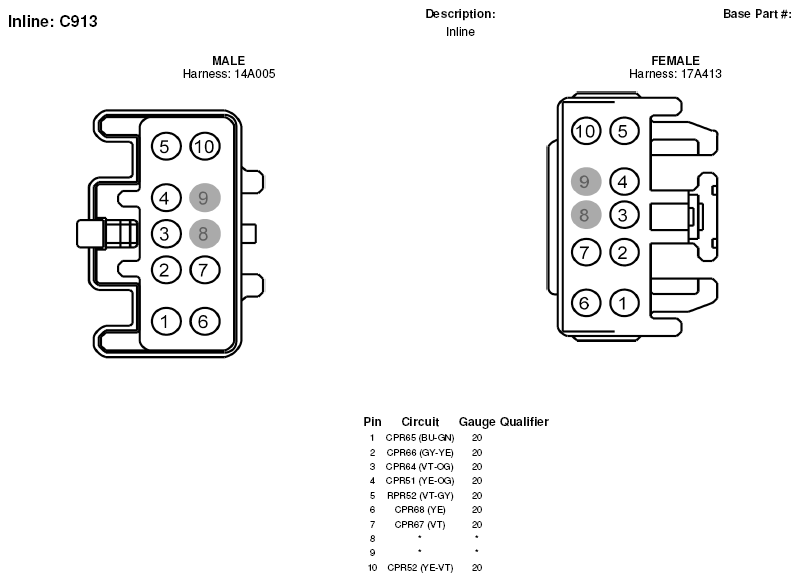

Fig 28: Inline Connector End View (C913)

G05603408

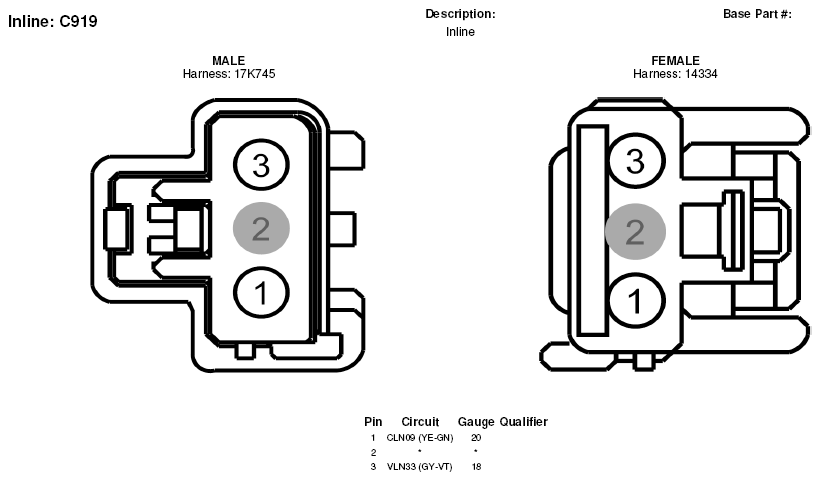

Fig 29: Inline Connector End View (C919)

G05603409

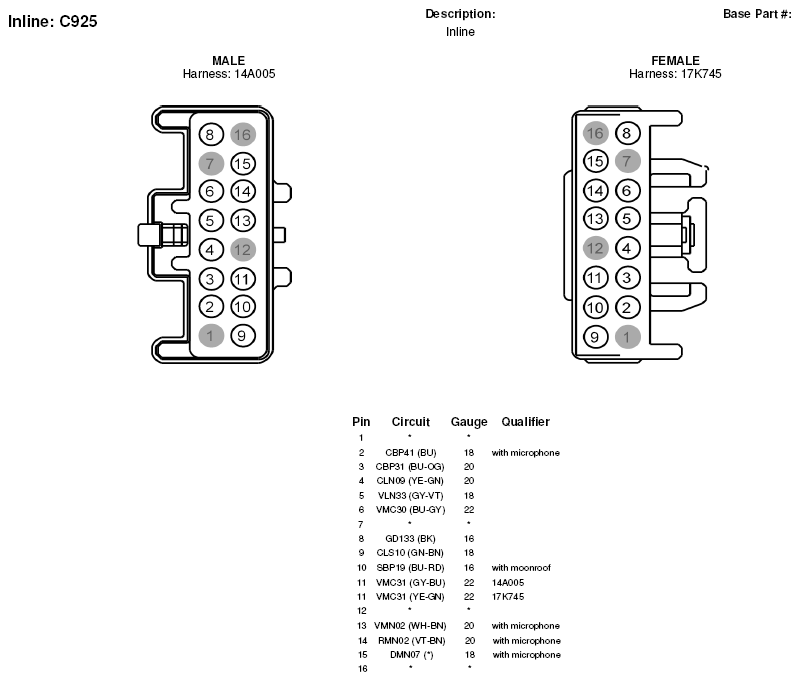

Fig 30: Inline Connector End View (C925)

G05603411

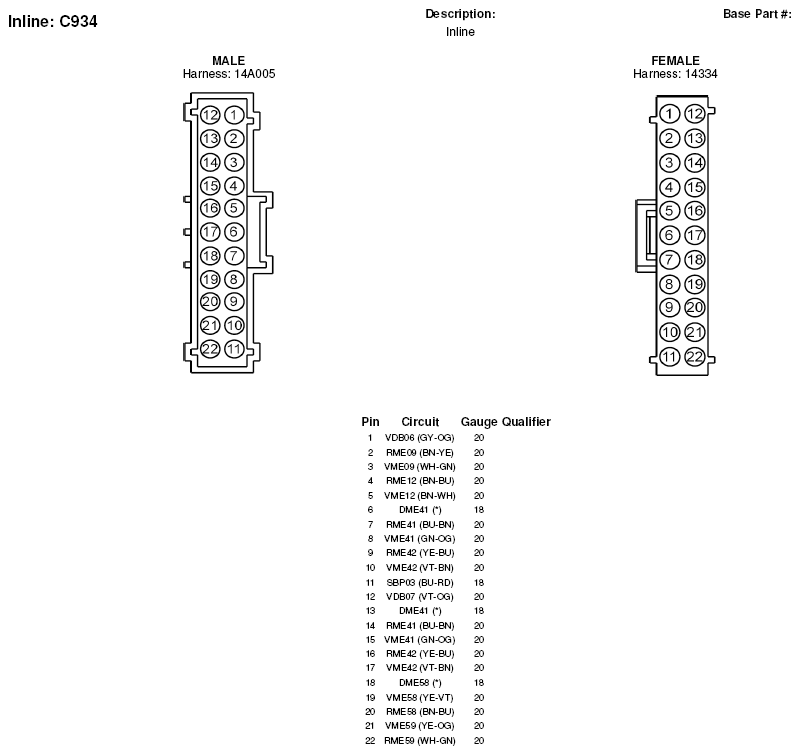

Fig 31: Inline Connector End View (C934)

G05603413

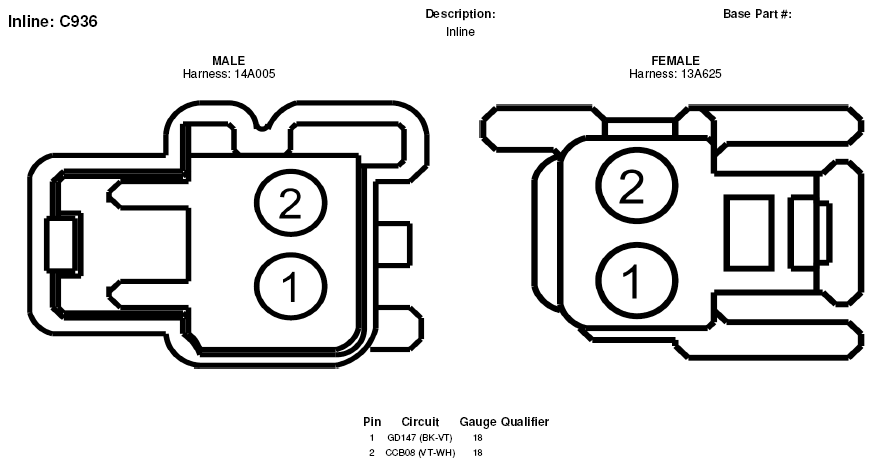

Fig 32: Inline Connector End View (C936)

G05603414

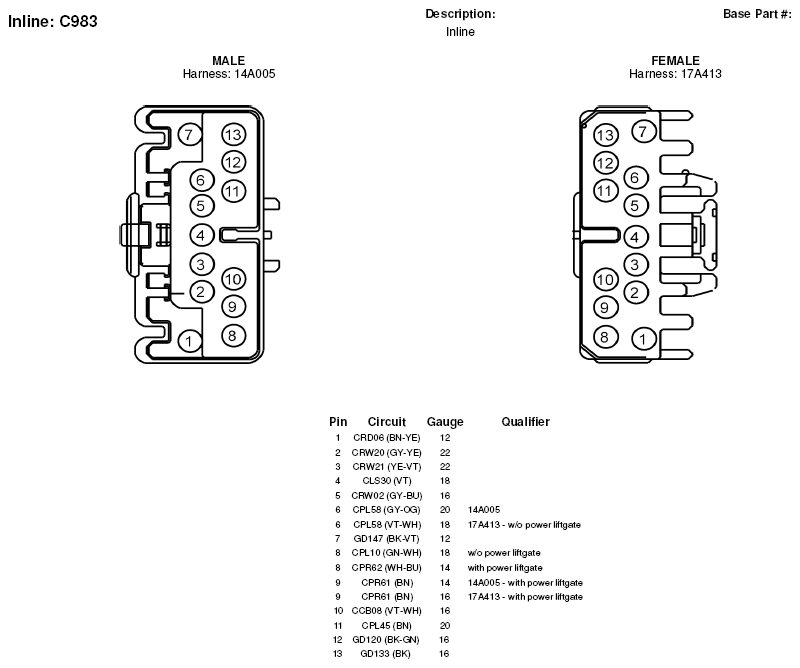

Fig 33: Inline Connector End View (C983)

G05603417

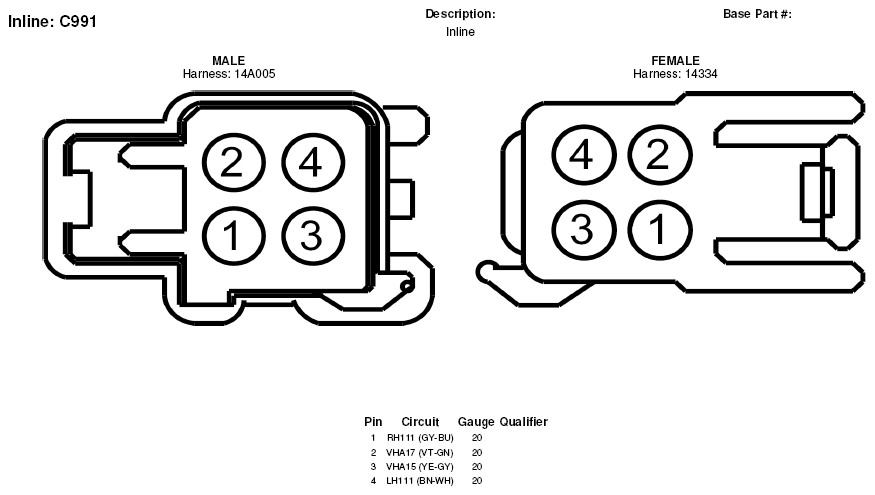

Fig 34: Inline Connector End View (C991)

G05603419

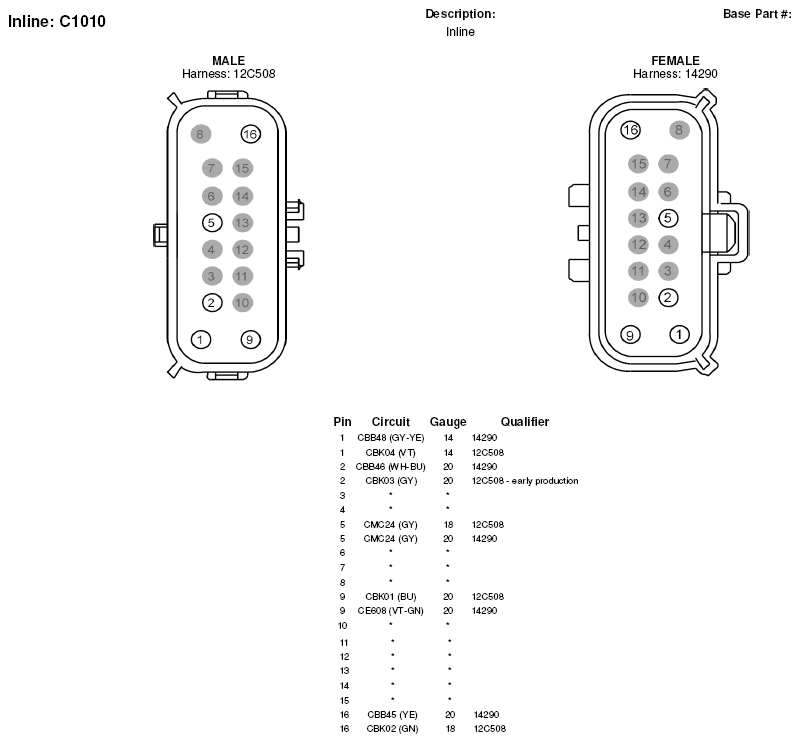

Fig 35: Inline Connector End View (C1010)

G05603420

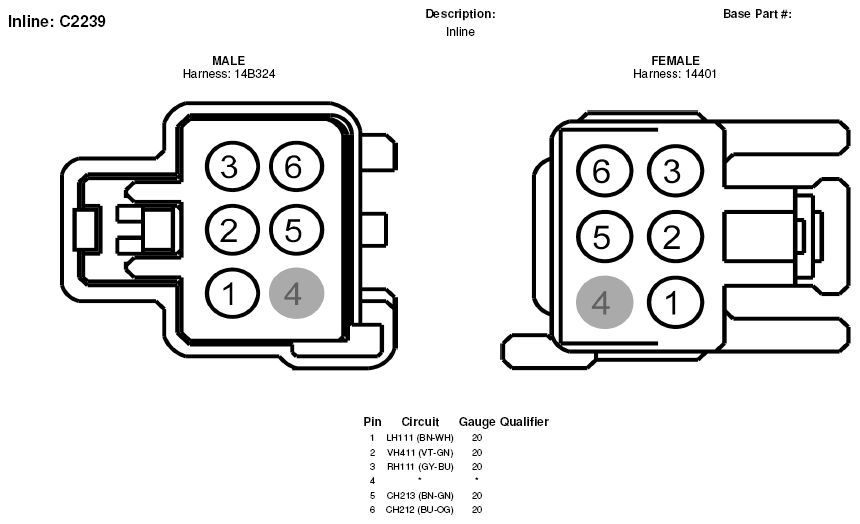

Fig 36: Inline Connector End View (C2239)

G05603463

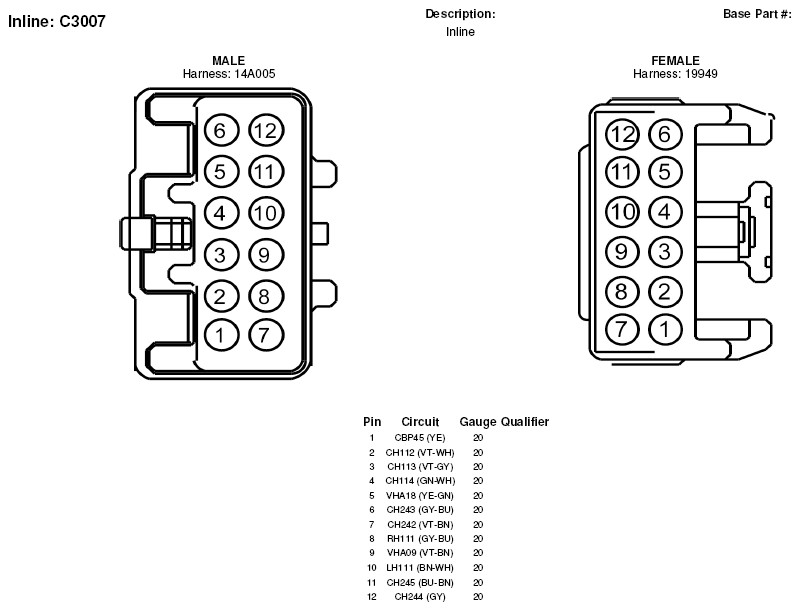

Fig 37: Inline Connector End View (C3007)

G05603479

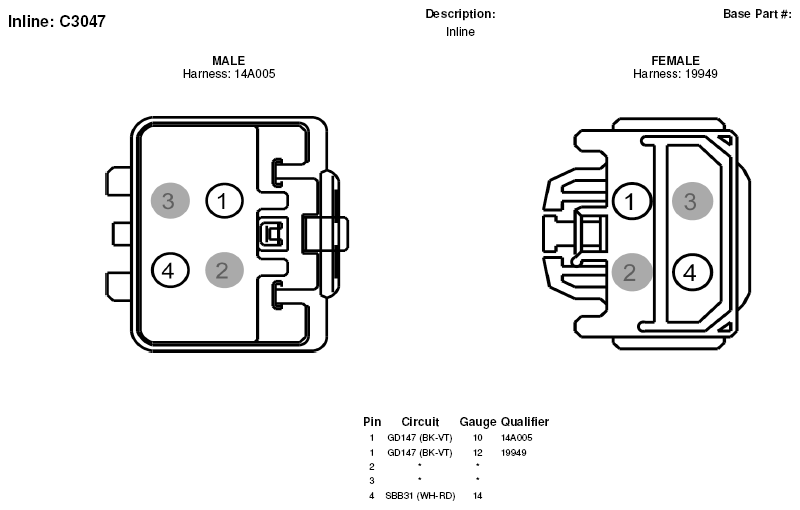

Fig 38: Inline Connector End View (C3047)

G05603484

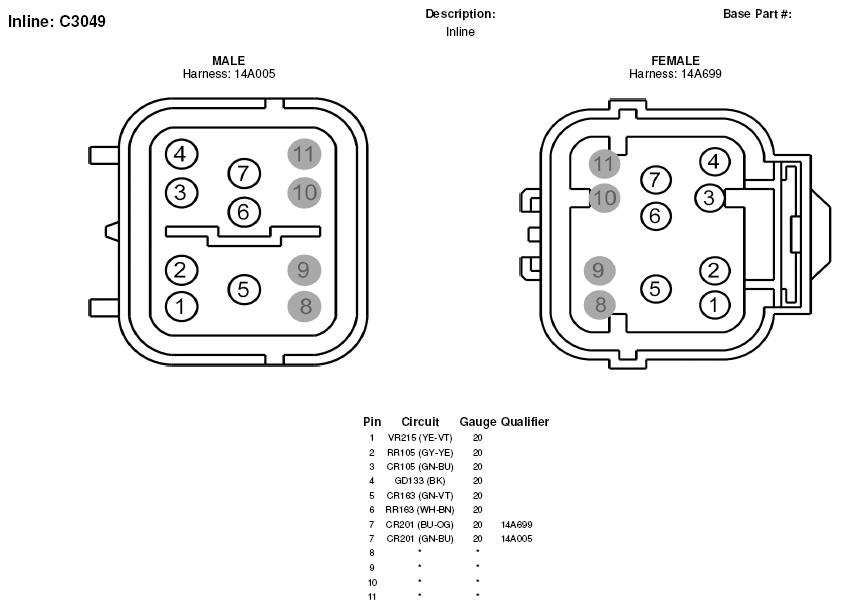

Fig 39: Inline Connector End View (C3049)

G05603485

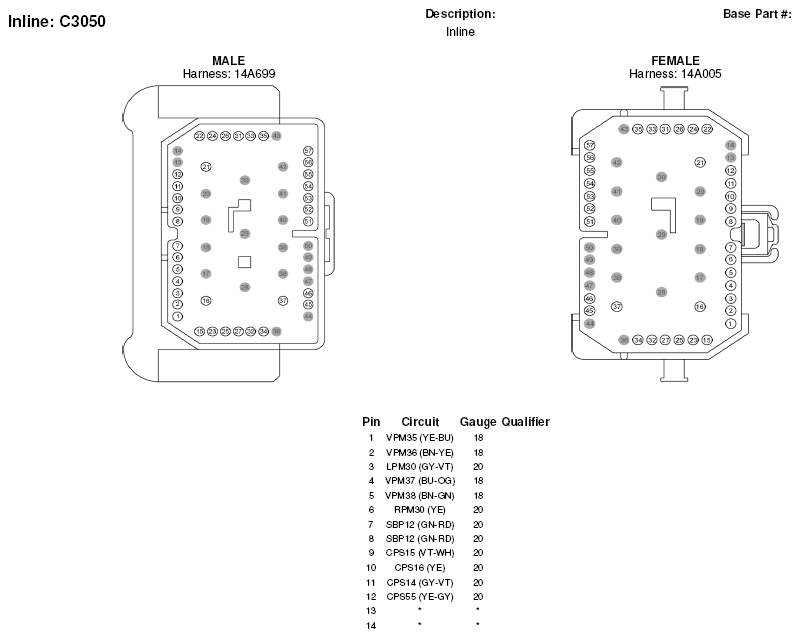

Fig 40: Inline (1 Of 2) Connector End View (C3050) (1 Of 2)

G05603486

Fig 41: Inline (2 Of 2) Connector End View (C3050) (2 Of 2)

G05603487

Fig 42: Inline Connector End View (C3133)

G05603497

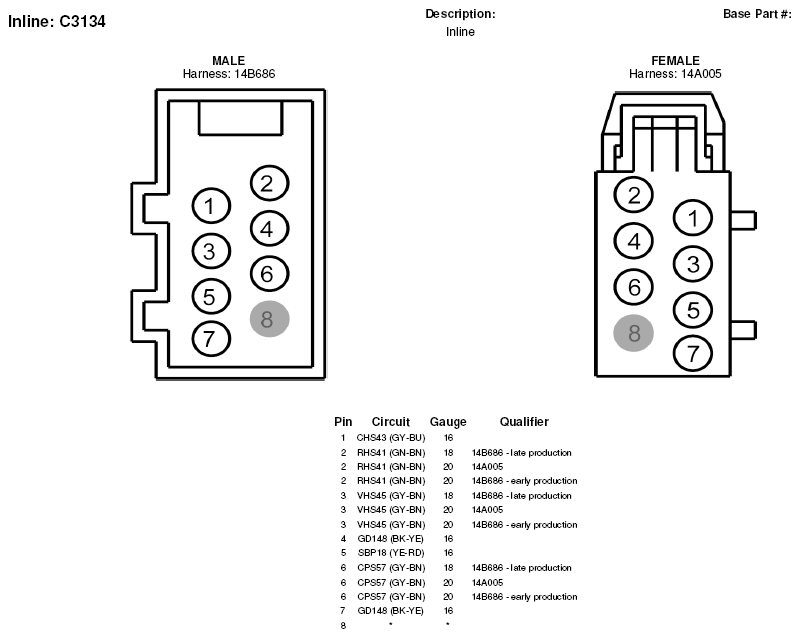

Fig 43: Inline Connector End View (C3134)

G05603498

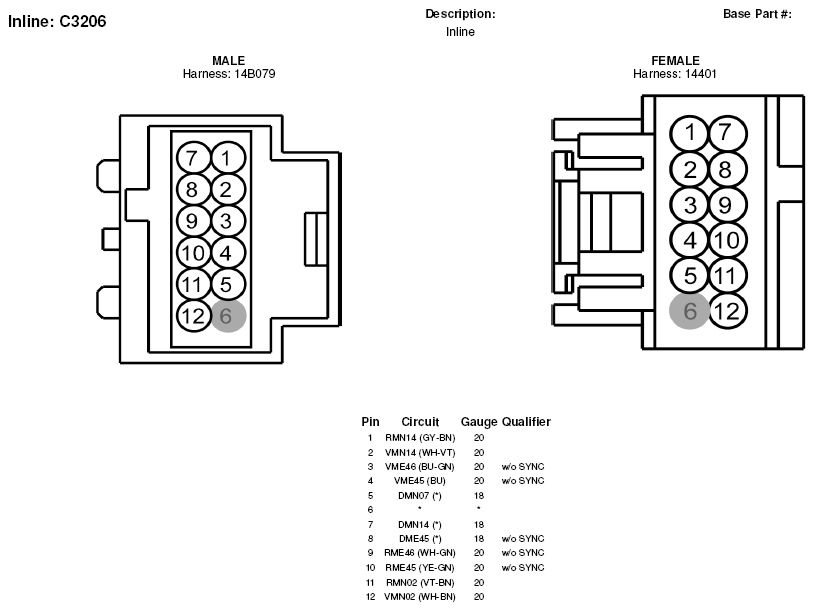

Fig 44: Inline Connector End View (C3206)

G05603507

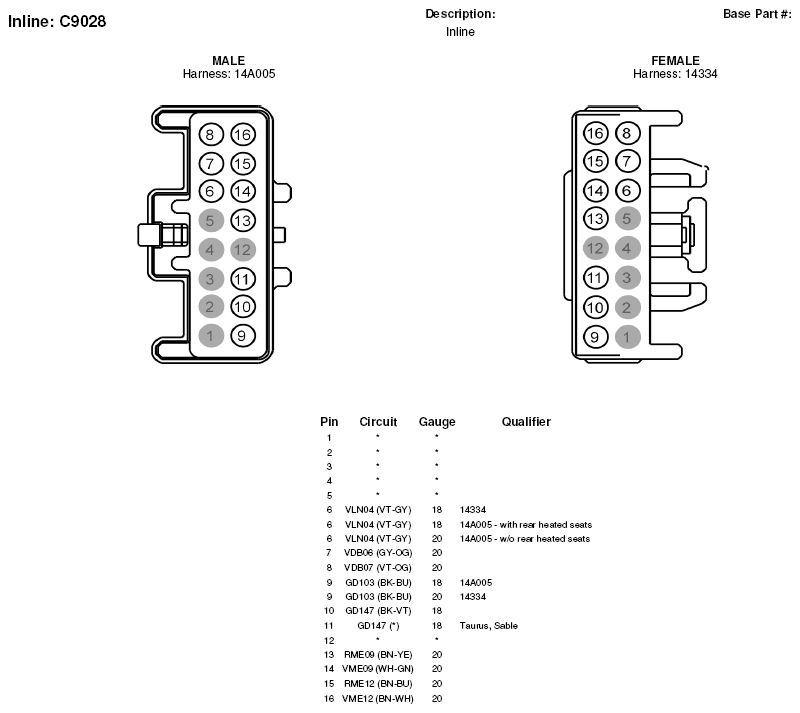

Fig 45: Inline Connector End View (C9028)

G05603558
