Fuel Injector Connectors

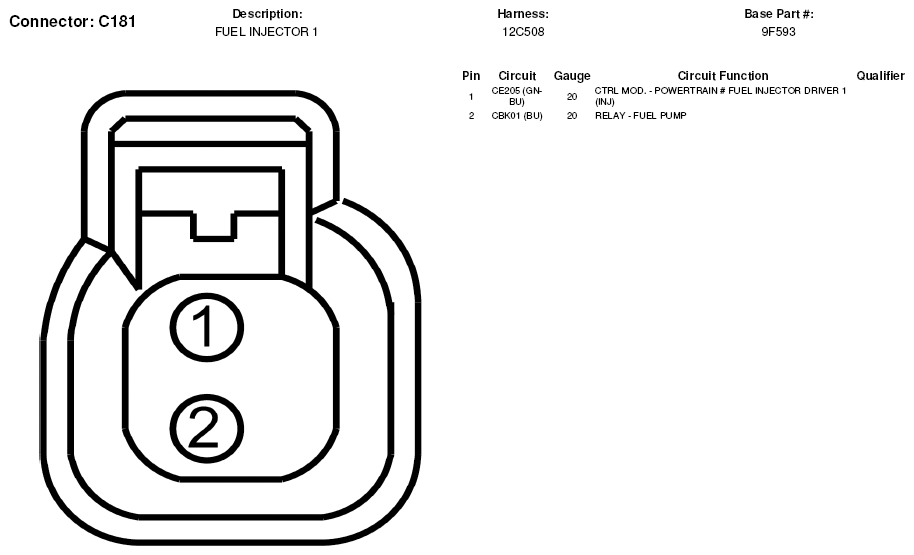

Fig 1: Fuel Injector 1 Connector End View (C181)
G05603274
Fig 2: Fuel Injector 2 Connector End View (C182)
G05603275
Fig 3: Fuel Injector 3 Connector End View (C183)
G05603276
Fig 4: Fuel Injector 4 Connector End View (C184)
G05603277

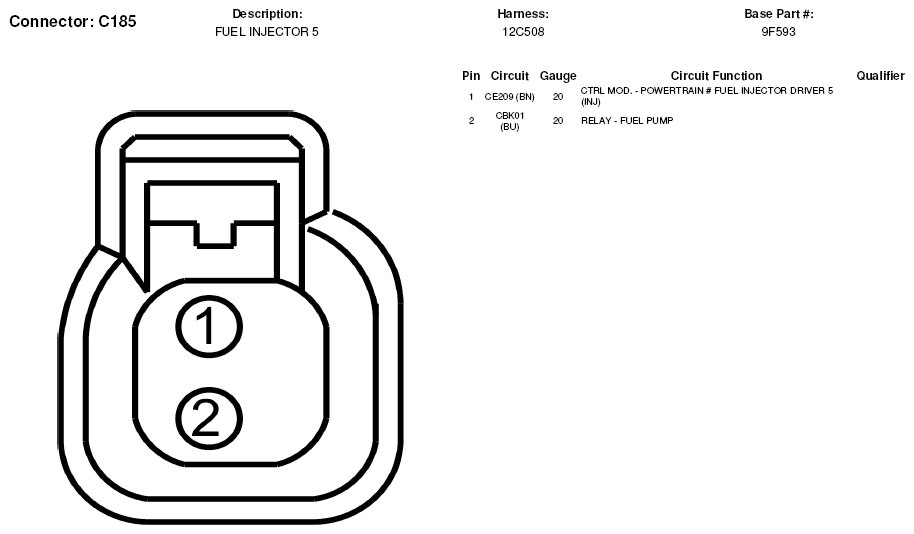

Fig 5: Fuel Injector 5 Connector End View (C185)
G05603278
Fig 6: Fuel Injector 6 Connector End View (C186)
G05603279
