Home >> Mercury >> 2008 >> Sable Base, AWD >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Connector Views >> Front Blower Motor Speed Controller Connector

Front Blower Motor Speed Controller Connector

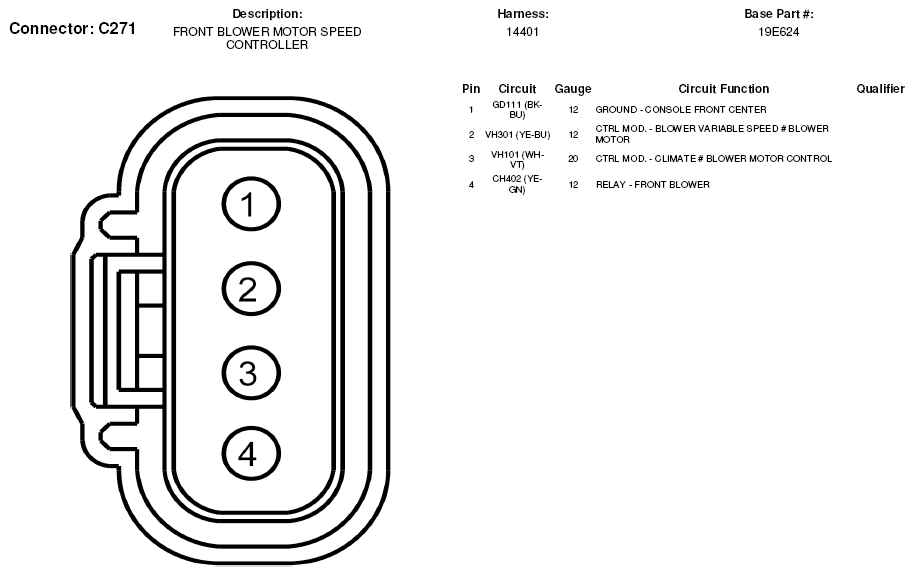

Fig 1: Front Blower Motor Speed Controller Connector End View (C271)

G05603309
