Driver 1 Side Impact Sensor Connector

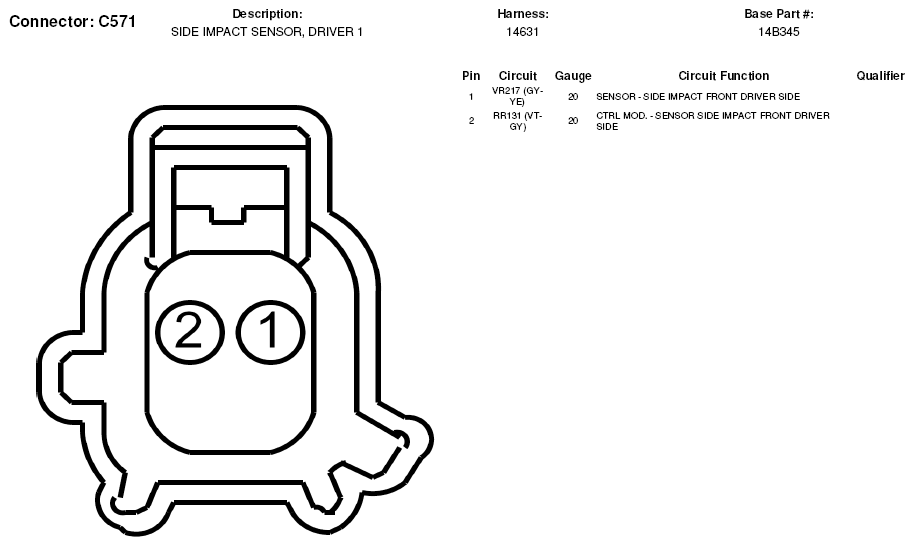

Fig 1: Driver 1 Side Impact Sensor Connector End View (C571)

G05603380
