Crankshaft Position Sensor Connector

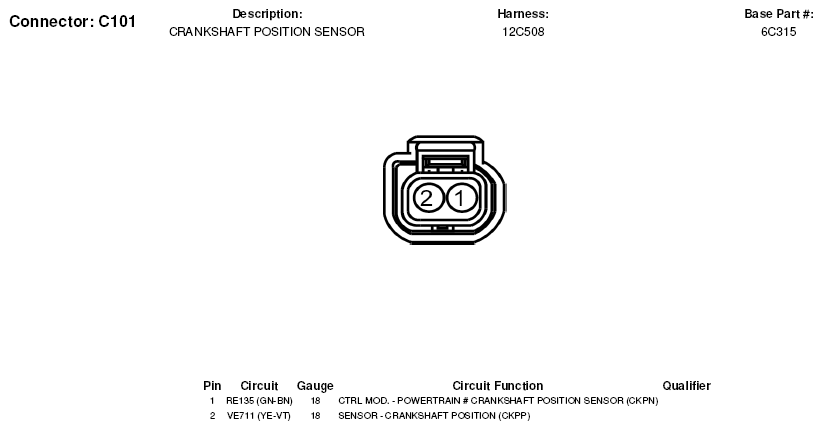

Fig 1: Crankshaft Position Sensor Connector End View (C101)

G05603233
