Auto-Dimming Interior Mirror Unit Connector

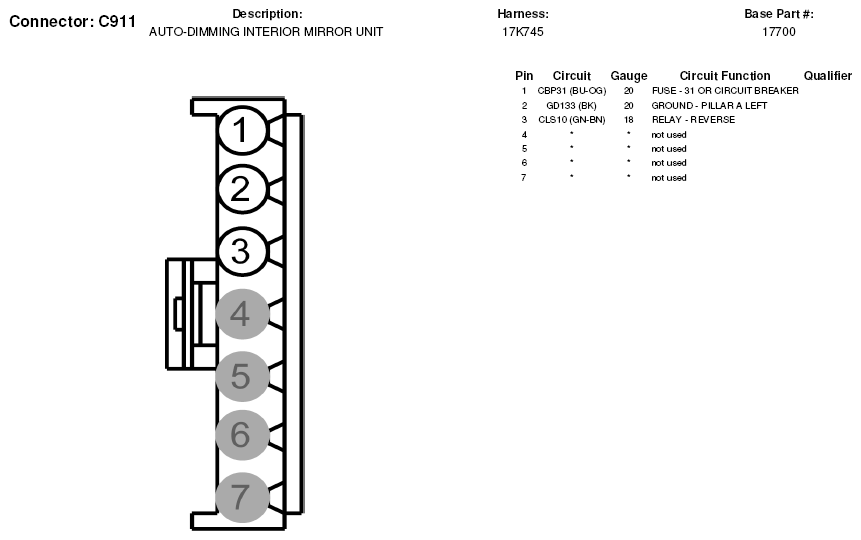

Fig 1: Auto-Dimming Interior Mirror Unit Connector End View (C911)

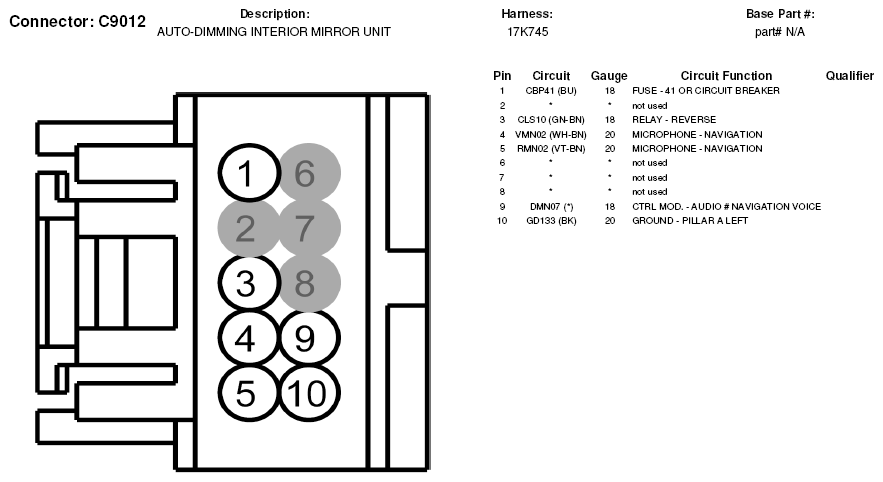

Fig 2: Auto-Dimming Interior Mirror Unit Connector End View (C9012)
