Variable Camshaft Timing (VCT) Oil Control Solenoid : Notes

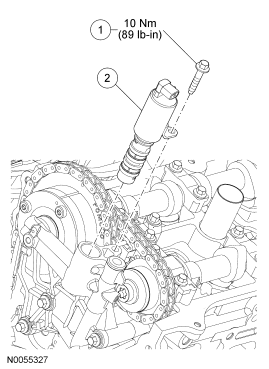

Fig 1: Exploded View Of Variable Camshaft Timing (VCT) Oil Control Solenoid With Torque Specification
GF0029456Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W500215 Variable camshaft timing (VCT) oil control solenoid bolt
2 6B297 VCT oil control solenoid
