Console - Overhead

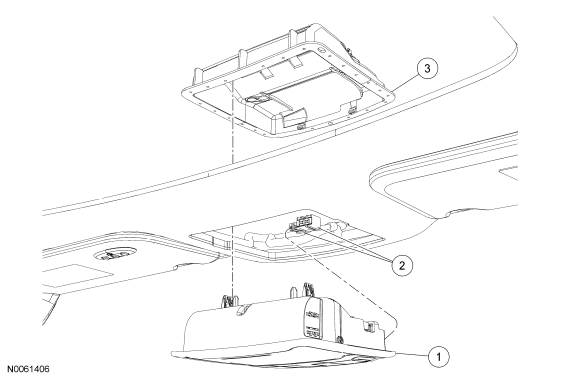

Fig 1: Exploded View Of Overhead Console
GF0031004Courtesy of FORD MOTOR CO.
Item Part Number Description
1 519A70 Overhead console
2 - Overhead console electrical connectors
3 519K22 Overhead console bracket
  1. Remove the overhead console.
    • Pull downward on the overhead console.
    • Disconnect the electrical connectors.
  2. To install, reverse the removal procedure.
