Windshield Washer Pump Motor Connector

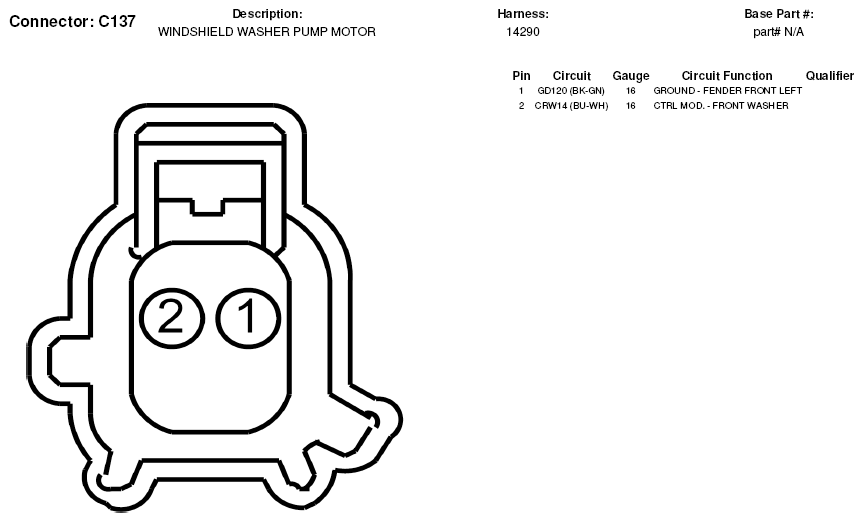

Fig 1: Windshield Washer Pump Motor Connector End View (C137)

G05603253
