Rear Wiper Motor Assembly Connector

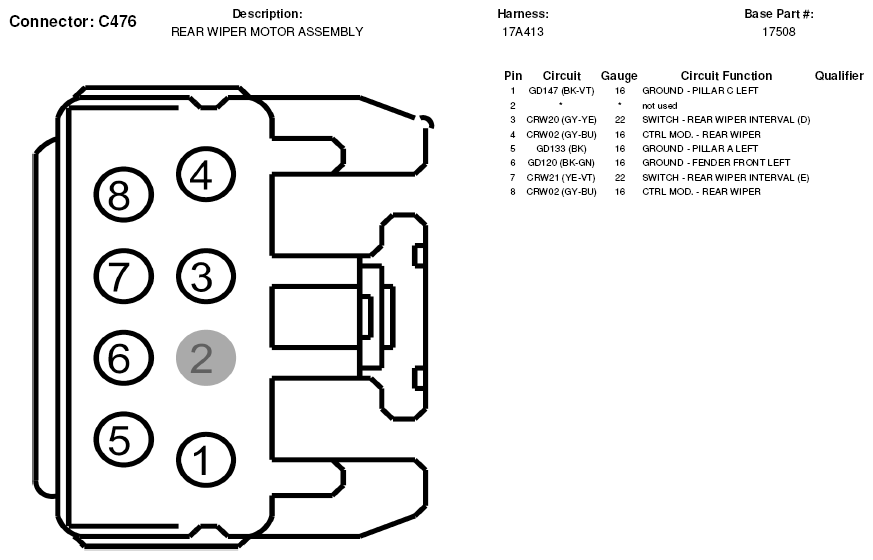

Fig 1: Rear Wiper Motor Assembly Connector End View (C476)

G05603363
