Passenger Side Door Lock Switch Connector

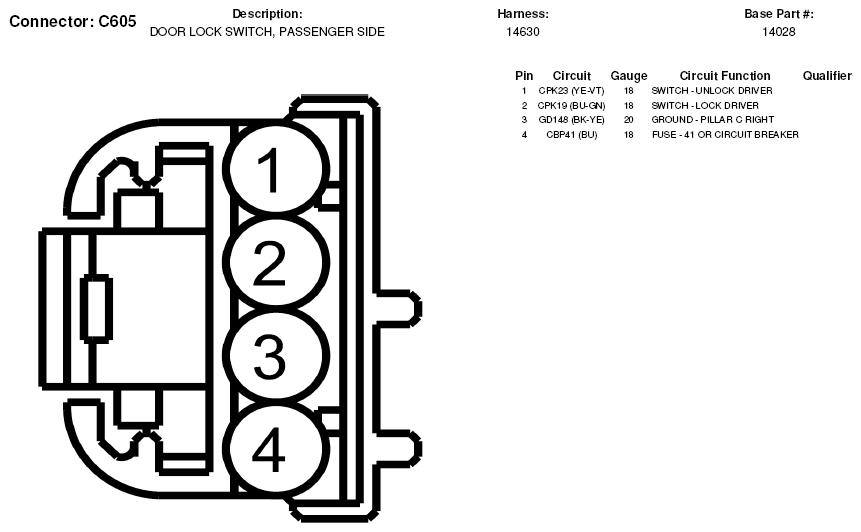

Fig 1: Passenger Side Door Lock Switch Connector End View (C605)

G05603384
