Passenger Seat Recliner Motor Connector

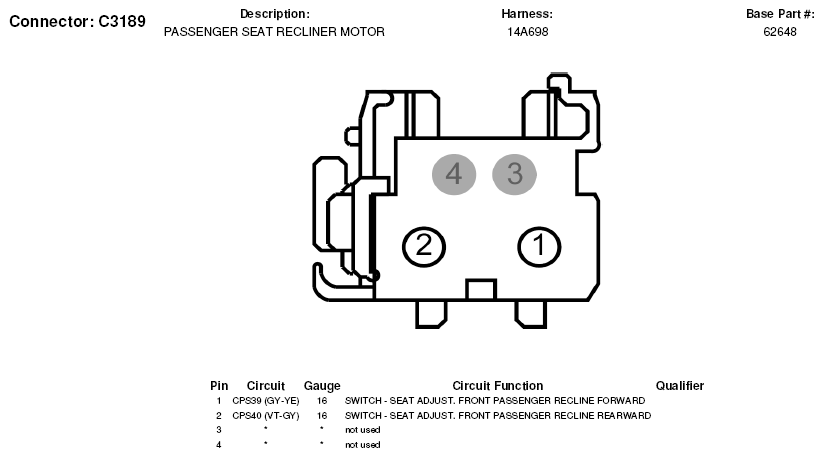

Fig 1: Passenger Seat Recliner Motor Connector End View (C3189)

G05603505
