Removal And Installation: Halfshaft: Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Front Hub Remover	205-D070 (D93P-1175-B) or equivalent
Courtesy of FORD MOTOR CO.	Axle Seal Protector	205-816

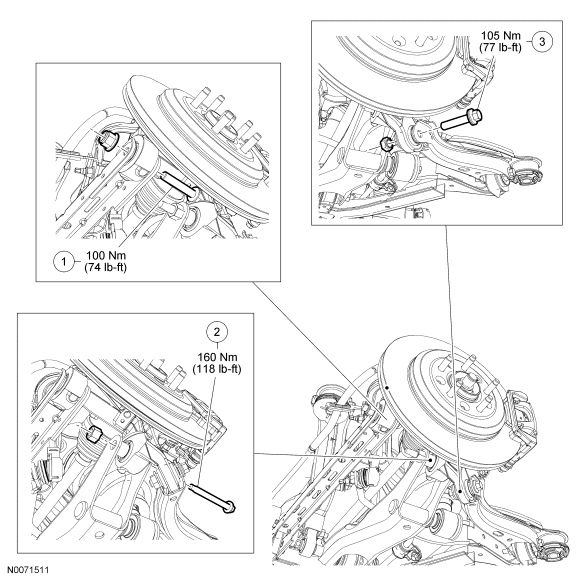

Fig 1: Halfshaft Components With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W708737	Toe link-to-knuckle bolt
2	W709125	Lower arm-to-knuckle bolt
3	W708735	Trailing arm-to-knuckle bolt

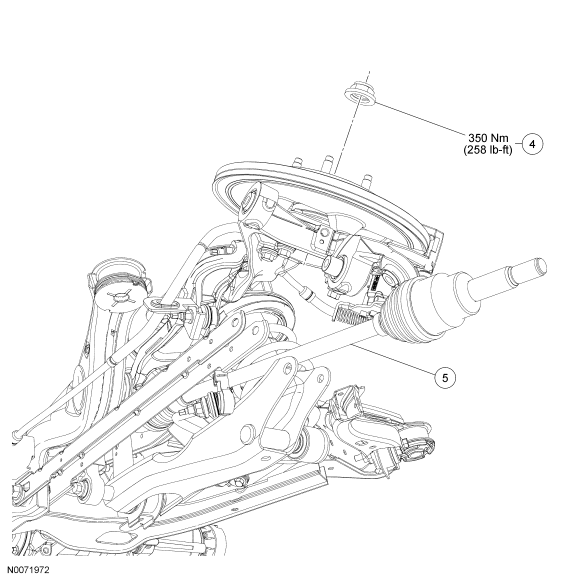

Fig 2: Halfshaft Components With Torque Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
4	W712435 S439	Wheel hub nut
5	-	Halfshaft
