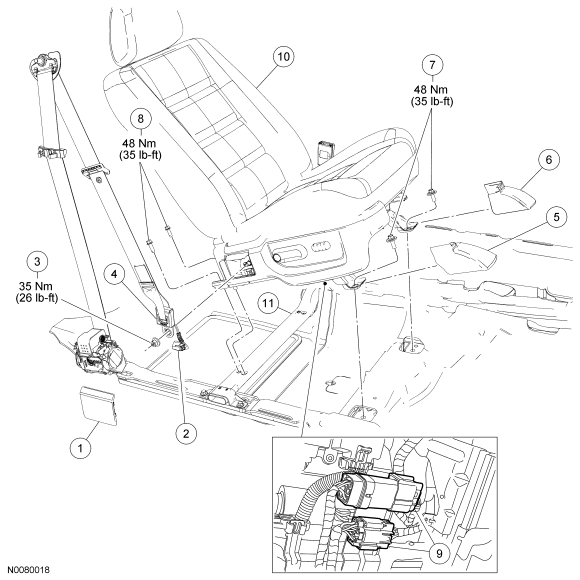

Seat - Front: Notes
NOTE:
RH shown, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 66414 | Cushion side shield cover |
| 2 | - | Belt tension sensor (BTS) electrical connector (part of 611B08) (passenger seat only) |
| 3 | W520113 | Safety belt anchor nut |
| 4 | - | Safety belt anchor with BTS (part of 611B08 RH)/ without BTS (part of 611B09 LH) |
| 5 | 622A00 | Seat-to-floor bolt cover, outboard |
| 6 | 622A68 | Seat-to-floor bolt cover, inboard |
| 7 | W709428 | Seat-to-floor bolts |
| 8 | W709622 | Seat rear mounting bolts |
| 9 | - | Electrical connectors (part of 14A464) |
| 10 | 60016 | Passenger seat assembly |
| 11 | - | Side impact protection system (SIPS) |
