Heated Seat Module - Rear
>>
Notes
Heated Seat Module - Rear: Notes

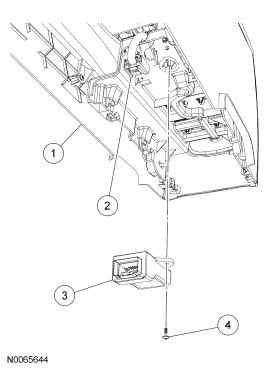

Fig 1: Heated Seat Module - Rear
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
-
Front floor console
2
-
Electrical connector
3
14C724
Heated seat module, rear
4
-
Screw
Courtesy of FORD MOTOR CO.
