Planetary Gear Assembly

  1. Clean and inspect the rear planetary sun gear and shell assembly for damage or wear and install new, as necessary.
    • Gear teeth
    • Shell-to-clutch pack surfaces
    • Thrust bearing surfaces
    2. Fig 1: Identifying Rear Planetary Sun Gear And Shell Assembly
    GF0044171Courtesy of FORD MOTOR CO.
  2. Clean and inspect the rear planetary gear carrier assembly for damage or wear and install new, as necessary.
    • Pinion gear teeth
    • Pinion gear surfaces
    • Pinion gear bearings
    • Spline teeth
    • Thrust bearing
    • Thrust bearing surfaces
    • Ring gear teeth

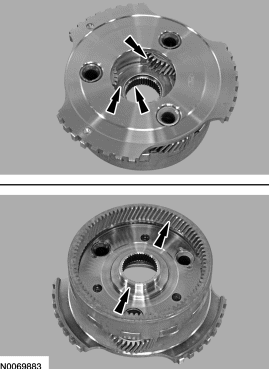

    3. Fig 2: Identifying Rear Planetary Gear Carrier Assembly
    GF0044172Courtesy of FORD MOTOR CO.
  3. Clean and inspect the center planetary sun gear for damage or wear and install new, as necessary.
    • Sun gear teeth
    • Spline teeth
    4. Fig 3: Identifying Center Planetary Sun Gear
    GF0044173Courtesy of FORD MOTOR CO.
  4. Clean and inspect the center planetary gear carrier assembly for damage or wear and install new, as necessary.
    • Pinion gear teeth
    • Pinion gear surfaces
    • Pinion gear bearings
    • Thrust bearing surfaces
    • Ring gear teeth

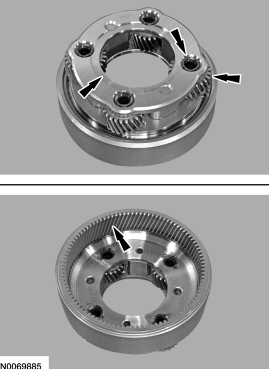

    5. Fig 4: Identifying Center Planetary Gear Carrier Assembly
    GF0044174Courtesy of FORD MOTOR CO.
  5. Clean and inspect the front planetary gear carrier assembly for damage or wear and install new, if necessary.
    • Spline teeth
    • Thrust bearing surfaces
    • Ring gear teeth
    • Shell-to-clutch pack surfaces
    • Pinion gear teeth
    • Pinion gear surfaces
    • Pinion gear bearings
    • Thrust bearing

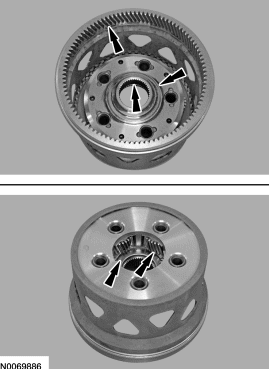

    6. Fig 5: Identifying Front Planetary Gear Carrier Assembly
    GF0044175Courtesy of FORD MOTOR CO.
  6. Clean and inspect the front planetary sun gear and shell assembly for damage or wear and install new, if necessary.
    • Sun gear teeth
    • Shell-to-clutch pack surfaces
    • Bearing surfaces
    7. Fig 6: Identifying Front Planetary Sun Gear And Shell Assembly
    GF0044176Courtesy of FORD MOTOR CO.
  7. Clean and inspect the front planetary carrier hub for damage or wear and install new, if necessary.
    • Spline teeth
    • Thrust bearing surfaces
    • Hub-to-stator support surfaces
    8. Fig 7: Identifying Front Planetary Carrier Hub
    GF0044177Courtesy of FORD MOTOR CO.
