Differential Gear Assembly: Assembly

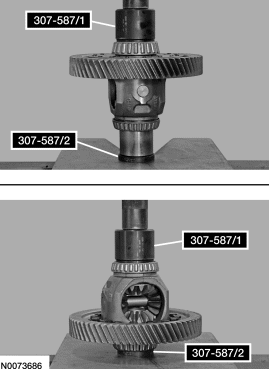

  1. Using Differential Bearing Installer and Guide 307-587 (307-587/1 and 307-587/2), press new differential carrier bearings on the differential assembly.
    2. Fig 1: Identifying Differential Assembly
    GF0044128Courtesy of FORD MOTOR CO.
