Right Rear Lamp Assembly Connector
Right Rear Lamp Assembly Connector

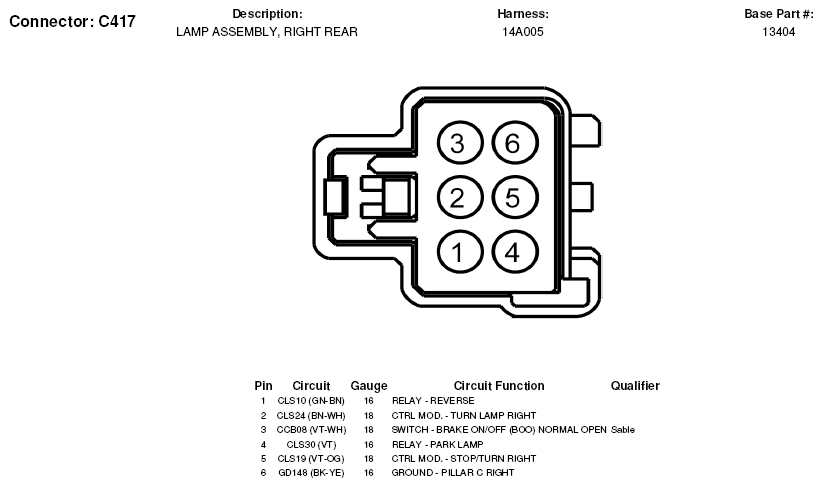

Fig 1: Right Rear Lamp Assembly Connector End View (C417)

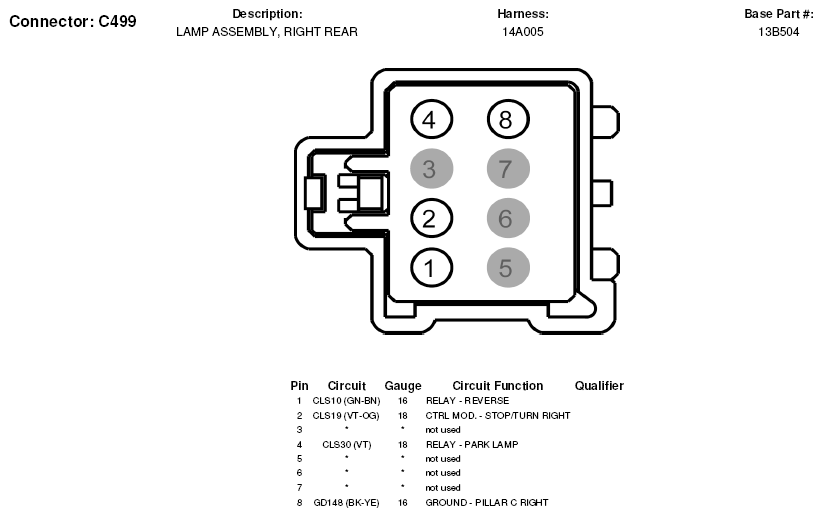

Fig 2: Right Rear Lamp Assembly Connector End View (C499)
