Power Steering Control Module Connector
Power Steering Control Module Connector

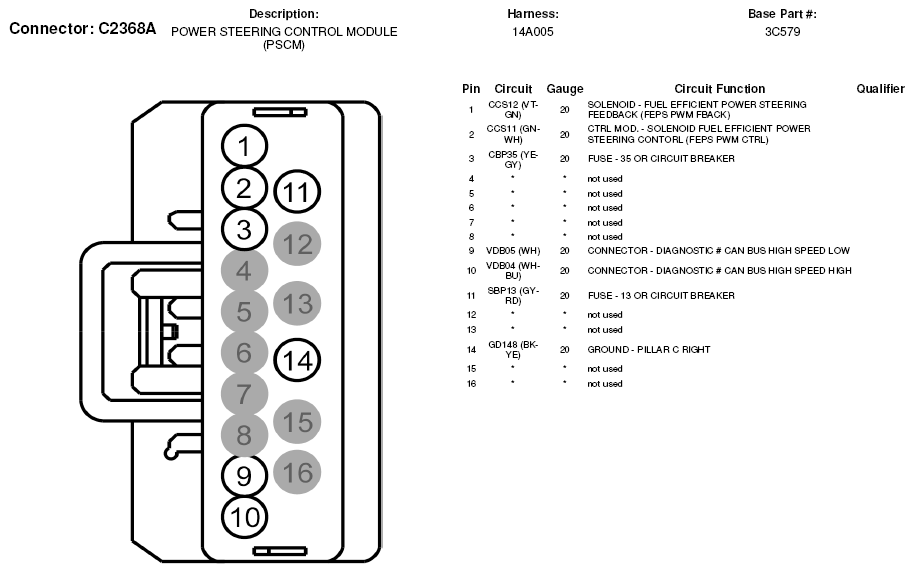

Fig 1: Power Steering Control Module Connector End View (C2368A)

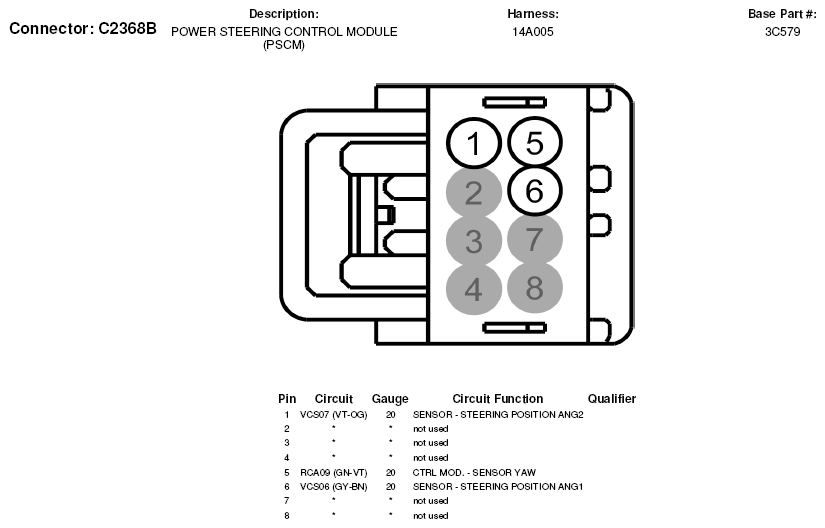

Fig 2: Power Steering Control Module Connector End View (C2368B)
