Passenger Side Airbag Module Connector

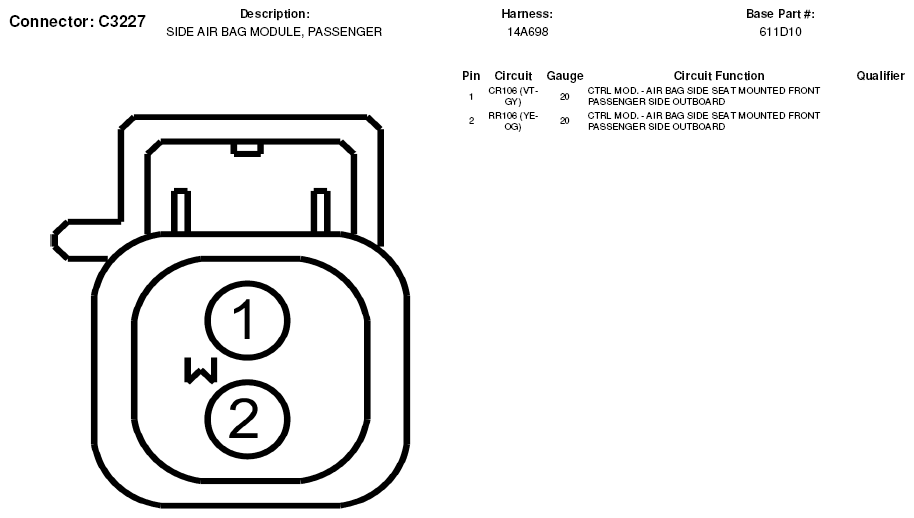

Fig 1: Passenger Side Airbag Module Connector End View (C3227)

G05603511
