Passenger Safety Canopy Module Connector

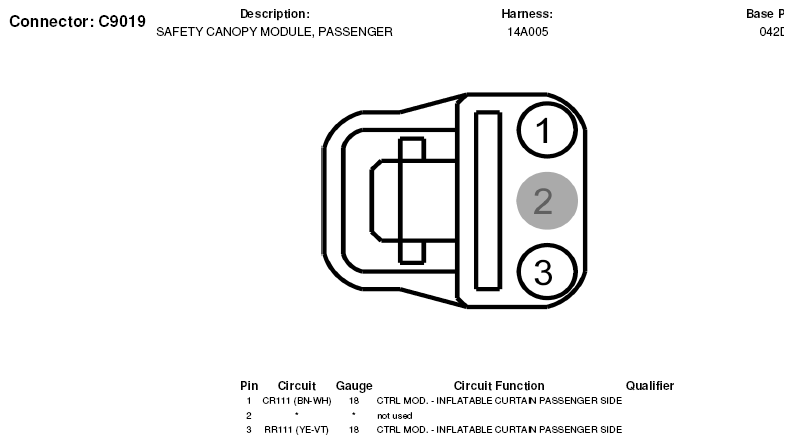

Fig 1: Passenger Safety Canopy Module Connector End View (C9019)
G05603556

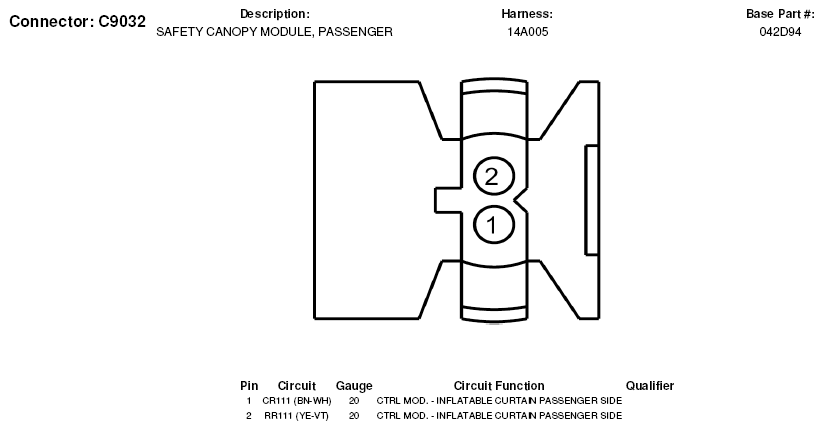

Fig 2: Passenger Safety Canopy Module Connector End View (C9032)
G05603563
